Cosmetics Automatic Hand Soap Plastic Bottle Capping Machine With Trigger Cap

Product Description

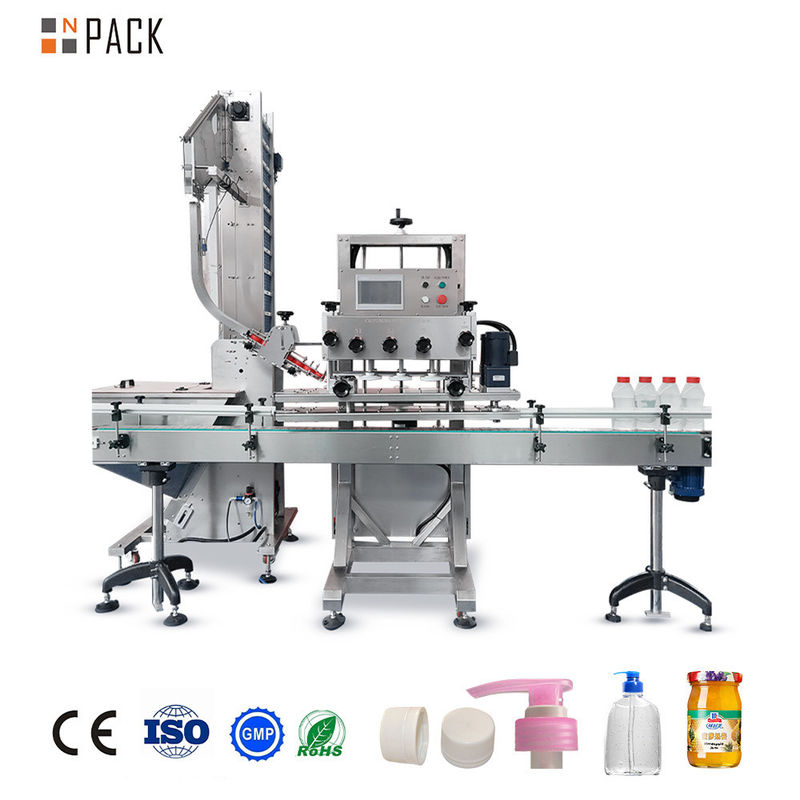

Full-automatic Linear Spindle Capping Machine

     This machine is a linear automatic screw capping machine. It can automatically lift the cap during the screw capping process, hang the cap, and perform the automatic screw capping process. Due to the use of a bottle clamping belt that clamps the bottle, the synchronous operation of hanging and screwing the cap ensures that the bottle will not fall during operation. This machine has the advantages of a simple structure and good stability. No spare parts are needed when replacing specifications; only adjustments are required.

It is suitable for screw cap sealing of cylindrical bottles, rectangular flat bottles, and special-shaped bottles in the food, cosmetics, daily chemical, pesticide, and chemical industries.

MAIN FEATURE

1. Variable speed AC motors.
2. Spindle wheels adjustment knobs, with lock nut hand wheel.
3. Meter Index for easy mechanical adjustment.
4. No change parts required for a wide range of containers
5. Comprehensive universal cap chute and escapement
6. With 2 layer bottle clamping belt, suitable for containers of various shape

Product Parameters

6 Wheels
1. Each wheels speed is indivadually adjustable, requency controlling
2. The wheels can run in opposite direction to make cap fitting the bottles well if necessary
3. Wheels are made of soft material to prevent caps from damage
4. Wheels are horizontally adjustable for different sizes of caps
5. Wheels are vertically adjustable for bottles of different height
6. Each wheels driven by one motor


Two-layer Bottle Clamp Belt
The double belts height is adjustable to fit differnet sizes bottles.and the angle is adjustable according to the bottle shape, more stable. Speed is frenquecy contolled to match the conveyor and capping speed


Motors

1. 6 motors for 6 capping wheels, and the motors can change to servo motor for torgue adjustable if customer need

2. 2 motors for botle clamping belt

3. 1 motor for machine height adjutment up and down

4. Capping torgue is adjustable for option

Product Application

After-sale Service

1. Installation:

Our team of skilled technicians is ready to travel and install the filling machine. The service fee covers installation, travel, meal expenses, and other related costs.

2. Training:

To ensure optimal performance of the filling machine, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.

3. Guarantee:

When repairing the filling machine, we provide efficient service, a one-year quality assurance period, parts supply, and swift feedback for troubleshooting.

4. Consulting Service:

Take advantage of our complimentary consultation service. Our professional sales team will guide you to the most suitable solution, complete with CAD drawing designs for the filling machine.

5. Technical Support:

Benefit from our all-weather, long-term technical support. Simply drop us an email or give us a call, and we'll provide quick feedback, ensuring you can be carefree.

6. Spare Parts:

During transportation, we include a set of vulnerable spare parts for the filling machine at no additional cost. You can also order a comprehensive range of high-quality parts at any time.
