High Speed Plane Labeling Machine For Flat Bag Pouches And Box

Minimum Order Quantity : 1 Price : 5000USD/set to 20000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 set
Place of Origin: China Brand Name: N PACK
Certification: CE ISO SGS Model Number: NP-SL

Detail Information

Model NO.: NP-SL Classification: Plane Labeling Machine
Packaging Material: Paper Packaging: Cartons
Bottle Type: Plastic Pet Glass Round Square Bottle Control: PLC Control
Labeling Speed (PCS/Min): 20-100bottle /Min Material: Stainless Steel 304/316
Accuracy: &Plusmn1mm; Transport Package: Wood
Specification: 1.8m*1.5m*1.6m Trademark: Npack
Origin: China HS Code: 8422303090
Supply Ability: 80-200bpm After-sales Service: Online Instruction
Warranty: 1 Year Automatic Grade: Automatic
Application: Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Seasoning, Dairy Products Type: Graphic Labeling Machine
Driven Type: Electric
Highlight:

High Speed Plane Labeling Machine

,

Box Plane Labeling Machine

,

Flat Bag Pouches Plane Labeling Machine

Product Description

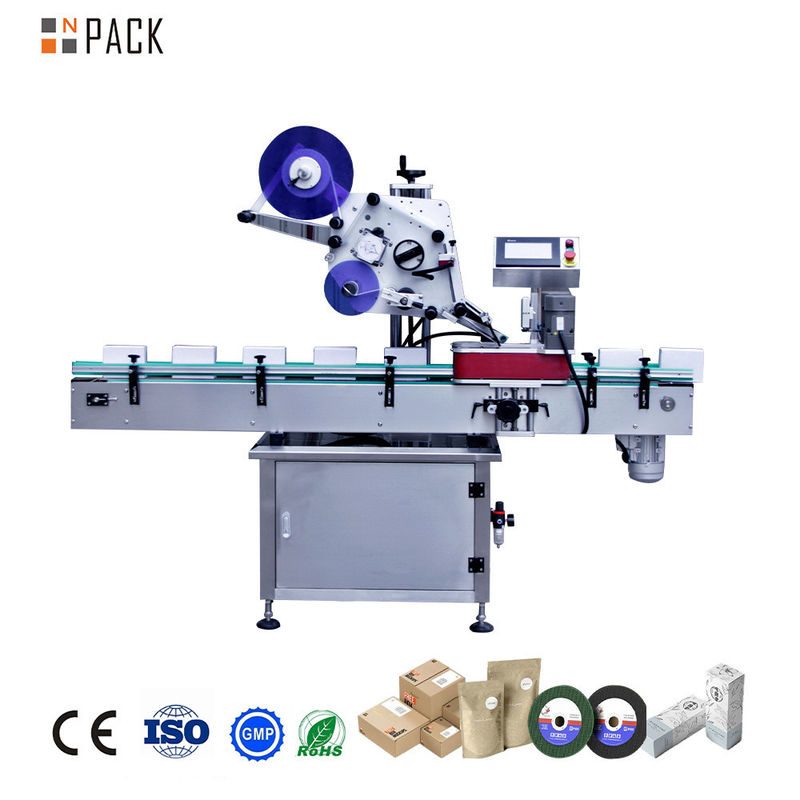

Automatic Top & Bottom Sides Labeling Machine

Flat Bag Pouch Label Applicator Square Plane Hand Sanitizer Bottle Labeling Sticker Machine



    The automatic labeling machine is a flat labeling machine, suitable for labeling the top and bottom of regular rectangular and square objects. It can apply two labels simultaneously, such as labeling both the top and bottom of a box. The machine can also be adjusted to operate as two separate flat labelers.





Main Features:
1. Precision Label Placement and Fast Feeding: Powered by Panasonic or Siemens servo motors and PLC control, the machine ensures labels are applied accurately without wrinkles or air bubbles.
2. Wide Application Range: Capable of labeling a variety of bag types, including flat, stand-up, and angle-supported bags, making it suitable for a wide range of applications.
3. Flexible Labeling Options: Offers the versatility to apply labels on various parts of the bag, such as the front, back, top, bottom, or sides, aligning with specific packaging designs.
4. Adaptable to Various Label Sizes and Shapes: Supports a range of label dimensions and shapes, from standard rectangles and circles to custom designs, accommodating different packaging needs.
5. Ease of Use: Equipped with a Siemens color HMI, allowing for straightforward adjustments to label specifications and placement, enhancing the user experience.



Technical Parameters


Technical Parameters
Machine Size
1600(L)×1000(W)×1250(H)mm
Output Speed
20-100pcs/min depends on label and bottle size
Height Label Object
30-280mm
Bag size
max L60cm; max W 40cm; max H10cm
Label Height
15-140mm
Label Length
25-300mm
Pastes the sign precision
±1mm
Roll inside
76mm
Roll Outside Diameter
300mm
Power Supply
220V 0.8KW 50/60HZ
Power Supply
2800(L)×1650(W)×1500(H)mm
Weight of Labeling Machine
450Kg







List of Components

List of Components
Description Brand
PLC Siemens
Touch Screen Siemens
Labeling head motor Panasonic
Transducer Delta
DC24V Electrical Source Delta
Checking Label Sensor Leuze
Checking bottle Sensor Keyence
Optical Keyence
SWITCH SCHNIDER
Emergency switch SCHNIDER





 Product Details

Flat Bag Pouch Label Applicator Square Plane Hand Sanitizer Bottle Labeling Sticker Machine
Flat Bag Pouch Label Applicator Square Plane Hand Sanitizer Bottle Labeling Sticker Machine





Product Application

Flat Bag Pouch Label Applicator Square Plane Hand Sanitizer Bottle Labeling Sticker Machine





Company Profile

Flat Bag Pouch Label Applicator Square Plane Hand Sanitizer Bottle Labeling Sticker Machine

Flat Bag Pouch Label Applicator Square Plane Hand Sanitizer Bottle Labeling Sticker Machine
