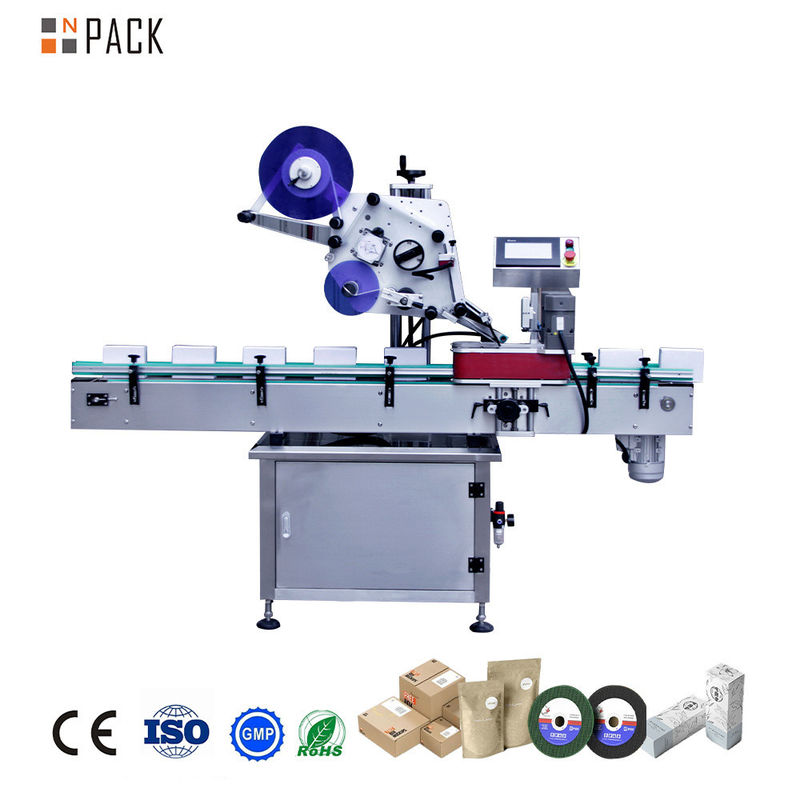

Seasoning Flat Surface Sticker Labeling Machine With High Precision And Flat Surfaces

Contact Now

Seasoning Flat Surface Sticker Labeling Machine With High Precision And Flat Surfaces

Minimum Order Quantity :	1	Price :	5000USD/set to 20000USD/set
Packaging Details :	Wooden box	Delivery Time :	40 working days
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Supply Ability :	100 SET

Place of Origin:	China	Brand Name:	N PACK
Certification:	CE ISO SGS	Model Number:	NP-SL

Detail Information
Model NO.:	NP-SL	Classification:	Plane Labeling Machine
Packaging Material:	Paper	Packaging:	Cartons
Bottle Type:	Plastic Pet Glass Round Square Bottle	Control:	PLC Control
Labeling Speed (PCS/Min):	20-100bottle /Min	Material:	Stainless Steel 304/316
Accuracy:	&Plusmn1mm;	Transport Package:	Wood
Specification:	1.8m1.5m1.6m	Trademark:	Npack
Origin:	China	HS Code:	8422303090
Supply Ability:	80-200bpm	After-sales Service:	Online Instruction
Warranty:	1 Year	Automatic Grade:	Automatic
Application:	Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Seasoning, Dairy Products	Type:	Graphic Labeling Machine
Driven Type:	Electric
Highlight:	Npack Flat Surface Sticker Labeling Machine , Flat Surface Sticker Labeling Machine

Product Description

Automatic Top & Bottom Sides Labeling Machine

High Precision Plane Pouch Bag Sticker Automatic Labeling Machine for Flat Surface

The automatic labeling machine is a plane labeling machine,it is suitable for labeling top and bottom of regular rectangles and square objects.it can be affixed with the following two labels at one time,such as labeling on the top and bottom of the box;separated separately and converted into two universal plane labeler

Technical Parameters

Technical Parameters
Machine Size	1600(L)×1000(W)×1250(H)mm
Output Speed	20-100pcs/min depends on label and bottle size
Height Label Object	30-280mm
Bag size	max L60cm; max W 40cm; max H10cm
Label Height	15-140mm
Label Length	25-300mm
Pastes the sign precision	±1mm
Roll inside	76mm
Roll Outside Diameter	300mm
Power Supply	220V 0.8KW 50/60HZ
Power Supply	2800(L)×1650(W)×1500(H)mm
Weight of Labeling Machine	450Kg

List of Components

List of Components
Description	Brand
PLC	Siemens
Touch Screen	Siemens
Labeling head motor	Panasonic
Transducer	Delta
DC24V Electrical Source	Delta
Checking Label Sensor	Leuze
Checking bottle Sensor	Keyence
Optical	Keyence
SWITCH	SCHNIDER
Emergency switch	SCHNIDER

Product Details

Product Application

Related Products

1.NP-VF Automatic Liquid Filling Machine

The NP-VF automatic servo piston filling machine is extremely flexible filler, is capable of filling accurately and rapidly any viscous material,such as detergent liquid,shampoo, hand soap,dishwashing liquid, shower gel and so on.

2.NP-LC Automatic Spindle Screw Capping Machine

High Precision Plane Pouch Bag Sticker Automatic Labeling Machine for Flat Surface

The NP-LC automatic spindle screw capping machine is extremely flexible , is capable of capping accurately and rapidly any cap,such as trigger cap, metal cap, flip cap and so on.

3.NP-RL Round Bottle Vertical Self-adhesive Labeling Machine

High Precision Plane Pouch Bag Sticker Automatic Labeling Machine for Flat Surface

NP-RL Automatic round bottle labeling machine also called vertical labeling machine, it is application for labelling a range of round bottles.The machine is used for full/partial wrap around labeling on different size of round container.
