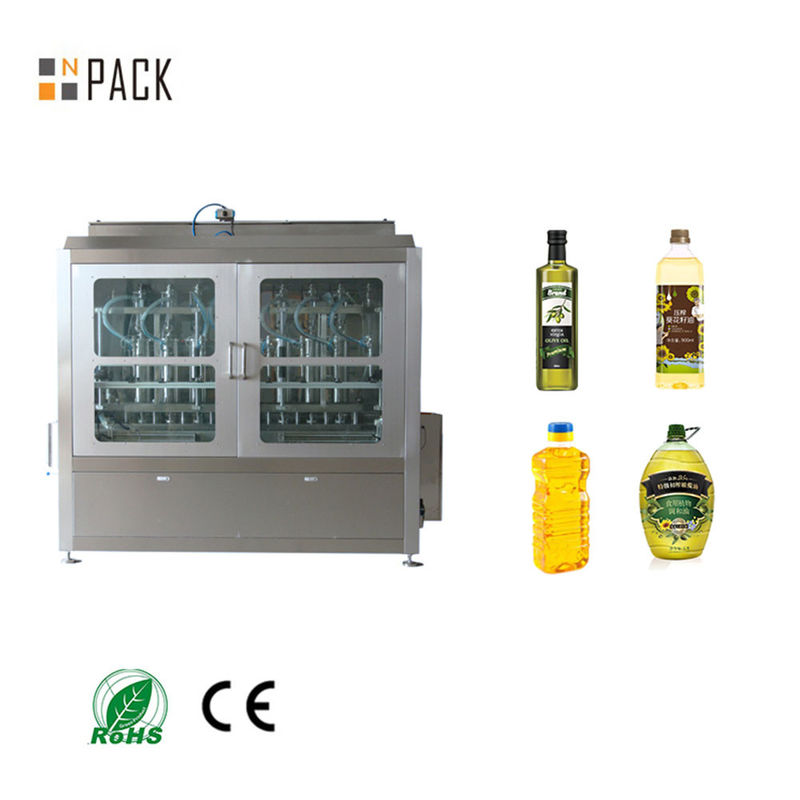

Npack Automatic Cooking Oil Bottling Packing Machine

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-VF

Detail Information

Application: Food/Beverage/Chemical Industry Bottle Type: Plastic Bottle,PET Bottle,Glass Bottle,Pail,Bucket
Driven Type: Servo Motor Filling Heads: 2-16 Head(Customizable)
Filling Precision: ±0.1% Type: Full Automatic
Warranty: 1 Year Video Outgoing-inspection: Provided
Material: Stainless Steel 304/316 Suitable For: High Viscous Products
Control: PLC+ Touch Screen After-sales Service Provided: Video Technical Support Online Support
Weight: 700kg Place Of Origin: Shanghai, China
Highlight:

Automatic Cooking Oil Bottling Packing Machine

,

Npack Cooking Oil Bottling Packing Machine

,

Cooking Oil Bottling Packing Machine

Product Description

Automatic Cooking Oil Bottling Packing Machine

Npack offers a wide range of cooking oil filling machine solutions designed to meet varying customer requirements. Our customizable bottling packaging models can be integrated into a production line, handling processes from bottle in-feeding and oil filling to capping and labeling. Each filling station can be tailored with the appropriate number of filling heads to match the desired production speed, while the feeding system ensures a consistent supply of oil to maintain filling accuracy.



Our cap tightening system can be equipped with an automatic cap feeding mechanism, suitable for different types of caps, including inner caps, pull ring caps, safety covers, and standard screw caps. We design and customize exclusive machines to suit each product's needs. For automated production lines, we can implement robotic-arm pick-and-place systems to accurately place caps on bottles. Whether the bottles are round or square, and regardless of their capacity (10 liters, 20 liters, or 30 liters), we provide comprehensive large-volume cooking oil filling and packaging solutions to meet your needs.

Npack Automatic Cooking Oil Bottling Packing Machine 0

Main Features of the Cooking Oil Filling Machine:

1. The filling range is wide, capable of filling capacities from 1 liter to 10 liters, providing flexibility.
2. The conveyor belt is constructed of stainless steel, ensuring smooth conveying while maintaining a bright, clean appearance, balancing both functional and aesthetic considerations.
3. Customers can adjust the liquid surface level according to their desired filling amount, and easily modify the filling position by adding small accessories.
4. The conveyor belt features a bottle-blocking mechanism with a soft, plastic pad to ensure consistent bottle separation for labeling, maintaining precision and stability.
5. All machines are equipped with fixed brackets and movable wheels for easy relocation by customers.
6. The entire machine features a colorful human-machine interface, making it easy for operators to monitor and adjust settings directly on the touchscreen.
7. Utilizes a production connecting system, so if one machine encounters an issue, the other machines stop simultaneously.
8. Offers dual adjustment modes, controllable via the human-machine interface or fine-tuned manually using a handwheel.
9. Equipped with an emergency button device, allowing operators to promptly halt the machine to inspect the production line.
10. The production line is constructed of stainless steel 304, with parts that come into contact with food made of 316 material to ensure sanitation compliance.
11. Suitable for various edible oils, including peanut oil, sesame oil, coconut oil, palm oil, olive oil, tea-seed oil, and canola oil, making it ideal for a wide range of filling and packaging needs.

Main parameter

Model
NP-VF-2
NP-VF-4
NP-VF-6
NP-VF-8
NP-VF-10
NP-VF-12
NP-VF-16
Heads
2
4
6
8
10
12
16
Range(ml)
100-500,100-1000,1000-5000
Capacity(bpm)base on 500ml
12-14
24-28
36-42
48-56
60-70
70-80
80-100
Air Pressure(mpa)
0.6
Accuracy(%)
±0.1-0.3
Power
220VAC SINGLE PHASE 1500W
220VAC SINGLE PHASE 3000W



Producti Details

Npack Automatic Cooking Oil Bottling Packing Machine 1 Npack Automatic Cooking Oil Bottling Packing Machine 2
Npack Automatic Cooking Oil Bottling Packing Machine 3 Npack Automatic Cooking Oil Bottling Packing Machine 4





 How Do Npack Inline Bottle Fillers Work?

Npack's cooking oil filling machines operate seamlessly on a conveyor system. Once the cooking oil containers are loaded, they move along the conveyor to the inline filling station. Positioned under the filler, each container is precisely filled to the specified amount using an inline filling nozzle. This adaptable filling technology is tailored to your cooking oil products, ensuring optimal results.



Our filling nozzles are versatile, capable of handling a wide range of cooking oil products, from thin oils to high-viscosity substances. Some of our cooking oil filling machines are equipped with capping capabilities, ensuring that your cooking oil remains fresh, sanitary, and easy to transport. Npack filling machines can accommodate various types of seals, including lids, snap-on tops, and screw caps.



Npack's cooking oil filling machines offer flexibility, able to fill bottles of various shapes and sizes, providing limitless packaging possibilities for your cooking oil products. Our team of skilled engineers designs each system to meet the unique requirements of your cooking oil production line.



After-sale Service

1. Installation: Our expert technicians are ready to travel to your location and install your filling machine. The service fee covers installation, travel, meals, and other related expenses.

2. Training: For optimal performance, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.

3. Guarantee: Our service includes efficient maintenance, a one-year quality assurance period, parts supply, and prompt troubleshooting.

4. Consulting Service: Take advantage of our free consultation service. Our professional sales team will help you find the most suitable solution, complete with CAD drawing designs for your filling machine.

5. Technical Support: Enjoy our comprehensive, all-weather technical support. Simply email or call us, and we'll provide quick feedback to keep your operations running smoothly.

6. Spare Parts: We include a set of essential spare parts for your filling machine during transportation at no extra cost. You can also order a wide range of high-quality parts at any time.
