palm oil filling machine

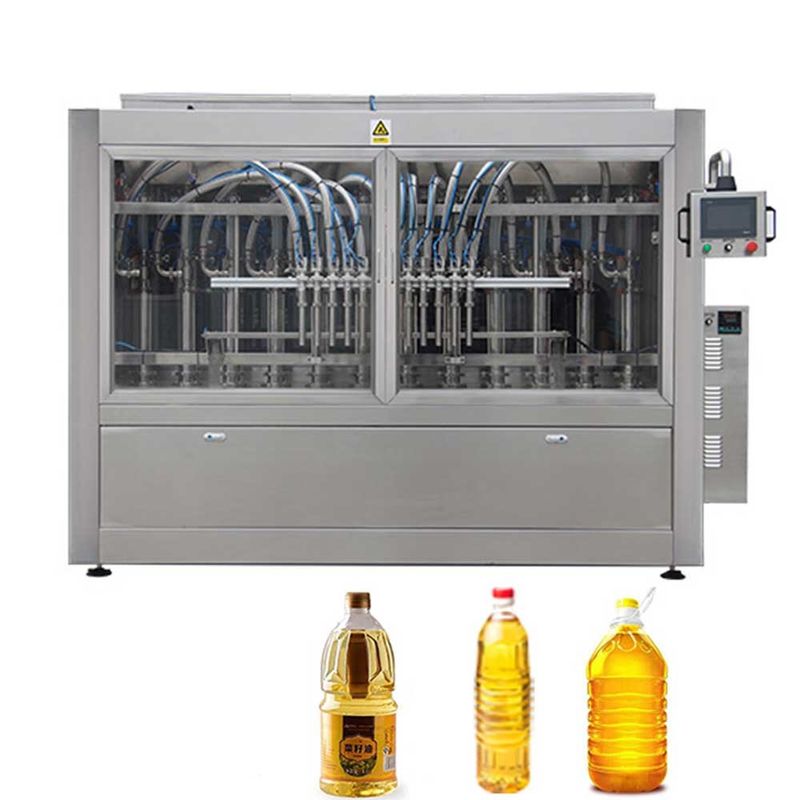

Our palm oil filling machine represents a cutting-edge innovation meticulously crafted by our company. This product stands out as a linear servo-driven paste and liquid filling machine, integrating PLC and touch screen automatic control. It boasts precise measurement, sophisticated structure, stable operation, low noise levels, extensive adjustment capabilities, and rapid filling speeds. Notably, it accommodates a wide range of liquids, including volatile, crystallized, and foamy substances, as well as those corrosive to rubber and plastics, and high-viscosity liquids and semi-fluids.
Featuring an intuitive touch screen interface for effortless operation, our machine allows for fine-tuning measurements with just a single touch. Crafted from high-quality stainless steel, the exposed components and liquid contact parts exhibit a polished surface, delivering an aesthetically pleasing appearance.
Feature
1. Crafted entirely from SUS 304 in adherence to GMP standards.
2. Equipped with an anti-drip mechanism on the filling head to prevent leakage during operation.
3. Utilizes advanced technology and components sourced from top-tier brands.
4. Boasts a compact and rational design with an elegant appearance, facilitating convenient adjustment of filling volumes.
5. Rapid integration of filling and capping, ideal for high-volume production lines.
6. Employs piston pumps for filling, suitable for various liquids with high precision; Pump structure features quick-disassembly components for easy cleaning and sterilization.
7. Volumetric injection pump's piston ring employs diverse materials such as silicone or ceramic based on liquid characteristics.
8. PLC control system with frequency conversion for speed adjustment, ensuring high automation.
9. Features automatic counting with no-fill function if no bottle is detected, equipped with anti-dropping mechanism.
10. Allows lump adjustment of filling quantity for all pumps, facilitating easy and swift operation.
11. Filling head incorporates anti-dropping mechanism, diving to the bottom for filling and rising gradually to prevent bubbling.
12. Versatile design accommodates bottles of varying sizes, easily adjustable for swift customization.
13. Complies with GMP requirements for overall machine integrity.
Main parameter
|
|
|
|
|
|
|
|
NP-VF-16
|
|
|
|
|
|
|
|
|
16
|
|
|
100-500,100-1000,1000-5000
|
Capacity(bpm)base on 500ml
|
12-14
|
24-28
|
36-42
|
48-56
|
60-70
|
70-80
|
80-100
|
|
|
|
|
|
|
|
|
220VAC SINGLE PHASE 1500W
|
220VAC SINGLE PHASE 3000W
|
Automated Filling Machine Process:
1. Set the desired filling amount.
2. Place the empty bottle manually.
3. Automatic transfer of the bottle.
4. Automatic sensing of bottle position and nozzle drop.
5. Automatic filling operation.
6. Automatic transfer of filled bottles.
7. Manual release.
8. Automatic capping.
9. Automatic coding.
10. Conveyor to storage warehouse.
Producti Details
After-Sale Services:
1. Installation:
Our team of proficient technicians is prepared to dispatch and set up the filling machine. The service fee encompasses installation, travel, meal expenses, and related costs.
2. Training:
To optimize the performance of the filling machine, we offer on-site or factory training sessions for dealers, machine operators, engineers, and technicians.
3. Warranty:
When it comes to repairing the filling machine, expect efficient service, a one-year quality assurance period, parts supply, and prompt troubleshooting assistance.
4. Consultation Service:
Take advantage of our complimentary consultation service. Our expert sales team will assist you in finding the most suitable solution, complete with CAD drawing designs for the filling machine.
5. Technical Support:
Benefit from our comprehensive, round-the-clock technical support. Simply reach out to us via email or phone, and we'll provide swift assistance, ensuring your peace of mind.
6. Spare Parts:
During transportation, we include a set of essential spare parts for the filling machine at no additional cost. Moreover, you can order a wide range of high-quality parts at any time.
Npack offers a wide range of customization choices for filling equipment designed for sunflower oil and other machinery in our stock. Select from a variety of configurations, sizes, and arrangements to personalize your liquid packaging setup. Our skilled professionals are proficient in assisting you with equipment selection and creating a tailored system that fits seamlessly into your facility.
To initiate the design and integration of a complete system including sunflower oil filling machines and complementary equipment, contact Npack for swift assistance.
