Product Description

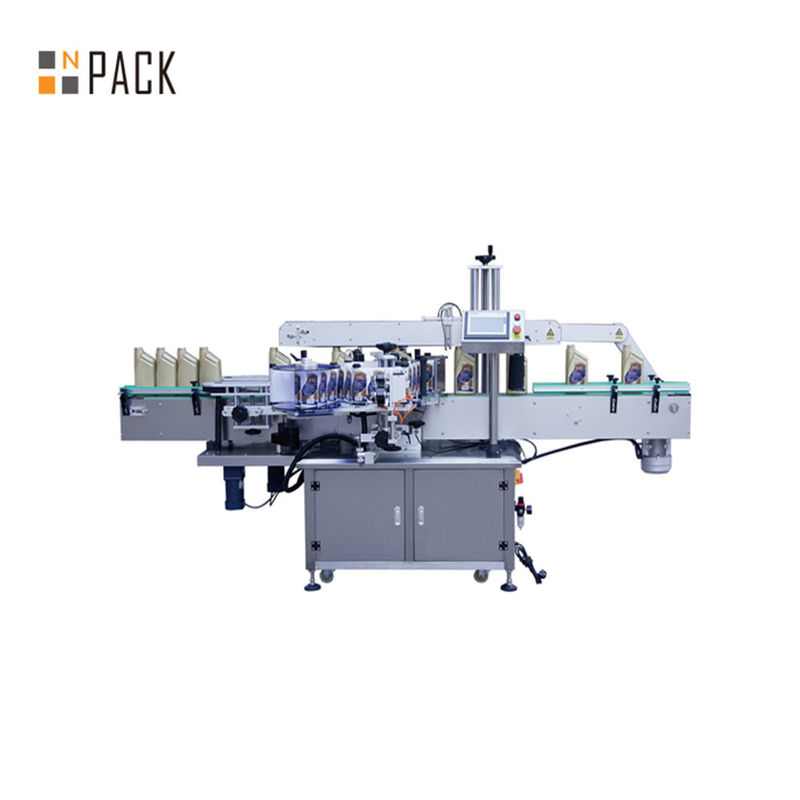

Automatic 5L Oil Bottle Two Sides Labeling Machine
The oil bottle labeling machine is designed to efficiently handle the labeling of diverse 5-liter oil bottles. It features a servo motor-driven mechanism that ensures not only high labeling accuracy and speed but also precise positioning for a seamless operation. Adjusting the machine's specifications is straightforward, making it user-friendly for operators. Constructed from stainless steel and aluminum alloy, this machine complies with GMP standards, highlighting its quality and durability.
This labeling machine caters to a wide range of industries, including food, oil, pharmaceuticals, wine, and cosmetics. It boasts an elegant design that simplifies operation and maintenance, allowing even workers without specialized training to operate it effectively. Switching between different types of bottle labeling is hassle-free, requiring only minor adjustments to accommodate a new product, thus ensuring flexibility and efficiency in production lines.
Key Features
1. The dual-side sticker labeling machine is versatile, accommodating single or double (short label) round bottles, both single and double-sided square bottles, and single and double-sided flat bottles. It’s ideal for a variety of products including shampoo, shower gel, cooking oil, lubricants, washing detergents, and eye drops, offering broad application and high adaptability.
2. The machine ensures a consistent and rapid label supply, maintaining both the speed and precision of label application.
3. It features a stepless speed adjustment with a synchronous wheel in the bottle separation mechanism, allowing for customizable separation distances.
4. Stability and precision in calibration are achieved using a synchronization chain within the calibration mechanism.
5. With a screw-adjusted pressing mechanism, it offers accurate adjustments and a wide range of adaptability to various bottle sizes.
6. The label positioning mechanism guarantees label placement accuracy within ±0.5mm.
7. Equipped with a Human-Machine Interface (HMI), it displays any issues and provides troubleshooting steps, ensuring ease of operation and quick mastery by anyone.
8. The design includes multiple emergency stop buttons that can be strategically placed along the production line for safety and uninterrupted production.
9. Label length customization is effortlessly managed through the HMI, with a photosensor and microcomputer automatically calculating necessary adjustments without needing to alter the sensor’s position, simplifying the process for any label size.
Application Range
1. Suitable Labels: Includes stickers, peel-off films, electronic monitoring codes, barcodes, and similar items.
2. Compatible Products: Designed for products that need labels attached to flat sides, sides with large curves, and around the circumference.
3. Industry Usage: Extensively utilized across various sectors such as beauty products, electronics, pharmaceuticals, metalworking, plastics, and more.
Parameter
| Labeling Speed (pcs/min) |
120-200(relate to material and label size) |
| Labeling Accuracy (mm) |
±1.0mm(material and label sizes are not counted in) |
| Label Size (mm) |
(L)10-300mm(H)10-250mm |
| Material Size(mm) |
Φ20-φ120mm(H)40-400mm |
| Roll Inside Diameter (mm) |
φ76mm |
| Roll Outside Diameter (mm) |
Max:Φ320mm |
| Machine Size(mm) |
(L)2800*(W)1400*(H)1400(mm) |
| Power Supply |
AC220V50Hz/60Hz1500W(Can be customized ) |
Product Detail
Process Flow:
The process begins with the manual placement of products on either a conveyor belt or a turntable designed for bottle handling. Following this initial step, the products are automatically sorted, aligned, and moved along the production line. The next stages involve inspecting the products and applying labels to them. After labeling, the products move to the collection area, ready for the next phase of processing, and finally, they are removed from the line.
Enhancements and Additional Equipment:
1. Thermal Printer:Offers the capability to add critical information such as production and expiration dates, batch numbers, and more directly onto products. This printer is designed to work in sync with the production line, boosting efficiency.
2. Inkjet Printer: This device is designed to work with top inkjet printers available in the market, enabling precise application of codes on specific areas of the product labels, and it integrates smoothly with the labeling machine.
3. Universal Sensor: To address the challenge of detecting transparent labels, we incorporate a high-precision electric eye sourced from Germany, ensuring accurate label detection every time.
4. Product Data Reader:A sophisticated reader that can scan QR codes, barcodes, and other relevant data, making it simpler to build a comprehensive product database. This feature greatly aids in tracking product history and streamlining traceability.
