Product Description

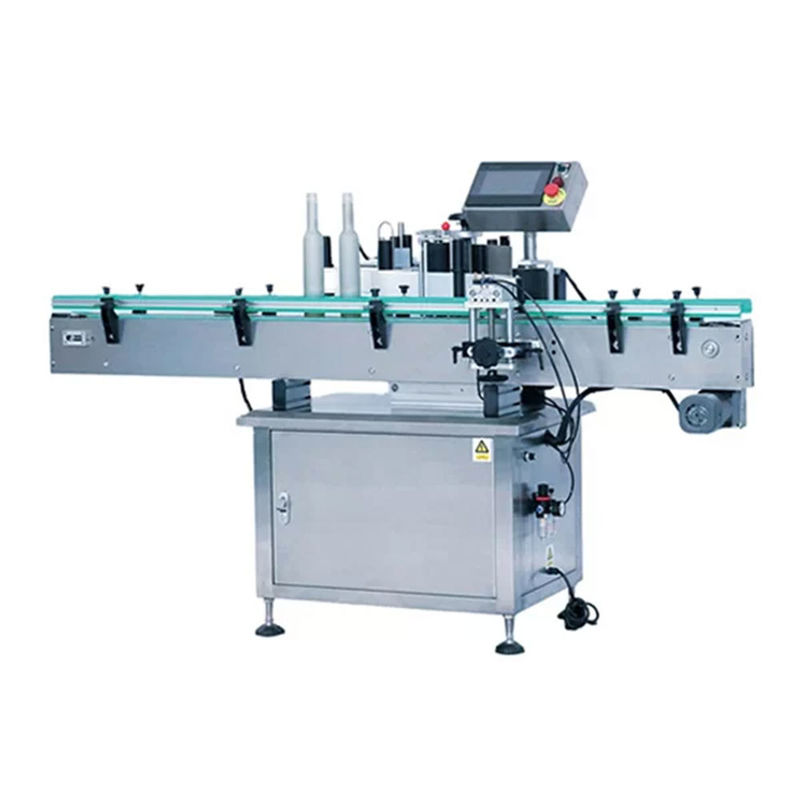

Automatic Economical Bucket Positioning Labeling Machine
Our bucket labeling machine stands at the forefront of industry technology, offering unmatched precision and efficiency in labeling large industrial round and square buckets, pails, jugs, and tubs. Leveraging innovative wipe gates, air manipulation, and servo-managed belt systems, NPACK ensures consistent, wrinkle-free label application with every use. Additionally, for containers with handles, an optional orientation module guarantees precise alignment of the label to the handle, enhancing overall labeling accuracy.
The labeling machine for buckets boasts user-friendly operation along with a label counter feature. Equipped with pre-set batch control, a keyboard, and a digital display, it's ideal for various large-format cylindrical labeling tasks. The inclusion of servo motors ensures swift and precise labeling, complemented by pneumatically controlled gating. Additionally, it features a bucket lift with a motorized drive assembly for precise label placement. Standard opaque label detection is included, along with easily adjustable pre-dispensing and label positioning facilitated by a graduated scale.
Features:
1. Optional positioning function available. Can operate in single or dual sticker labeling modes.
2. Easily adjustable labeling head ensures precise synchronization with conveyor belt speed for accurate labeling.
3. PLC human interface allows for customizable settings and adjustments of conveyor line speed, pressure belt speed, and label output speed.
4. Utilizes high-quality components from renowned brands including PLC, stepper or servo motor, driver, and sensor.
5. Designed for precise labeling of round bottles at fixed points.
6. Incorporates a rubber wheel differential spacing mechanism and inverter for stepless speed adjustment, enabling seamless transition between different product specifications without the need for parts replacement.
7. Equipped with imported, reputable servo motors to ensure high speed, precision, and stability.
8. Utilizes cylinder positioning for rapid action and compatibility with a wide range of product specifications.
9. Rubber wheel ensures prolonged label life, while positioning labeling ensures high precision.
10. Achieves labeling accuracy of ±0.5 mm.
parameter
| Machine Size |
2100(L)×1000(W)×1450(H)mm |
| Output Speed |
30-60pcs/min depends on bottle and label size |
| Bottle height |
30-380mm |
| Bottle diameter |
80-170mm |
| Label Height |
15-140mm (can be customize) |
| Label Length |
25-300mm (can be customize) |
| precision |
±0.5-1mm |
| Roll inside |
76mm |
| Roll Outside Diameter |
300mm |
| Power Supply |
220V 0.8KW 50/60HZ |
Advantages:
1. Versatile application, adaptable for labeling vertical bottles or containers of varying sizes; customization available to meet specific customer requirements.
2. Exceptional labeling precision, with labeling deviation ≤±0.5mm.
3. Features a squeezing-type feeding device for automated labeling completion.
4. Utilizes synchronous belt drawing for enhanced stability, with adjustable blocks facilitating easy switching between labeling bottles.
5. Elegant design coupled with a straightforward structure.
6. Equipped with photocell tracking for sensitive labeling detection.
7. Integrated coder allows for labeling and coding to be accomplished in a single machine.
Packing and Shipping:
Packaging and Shipment for the labeling machine:
Packaging:
The labeling machine will be carefully encased in a sturdy wooden crate to ensure its safe transportation.
To prevent any damage during shipping, the machine will be wrapped in protective materials.
All components and accessories will be meticulously packed, with clear labels for easy identification.
The packaging will also include a comprehensive user manual and a warranty card.
Shipping:
We offer various shipping options, including air, sea, and land transportation, tailored to our customers' specific needs.
Our experienced logistics team will carefully plan the shipping route and handle all necessary customs procedures.
Working with reliable shipping companies, we guarantee prompt and secure delivery of our products.
Customers will receive a tracking number to monitor the real-time status of their shipment.
