Product Description

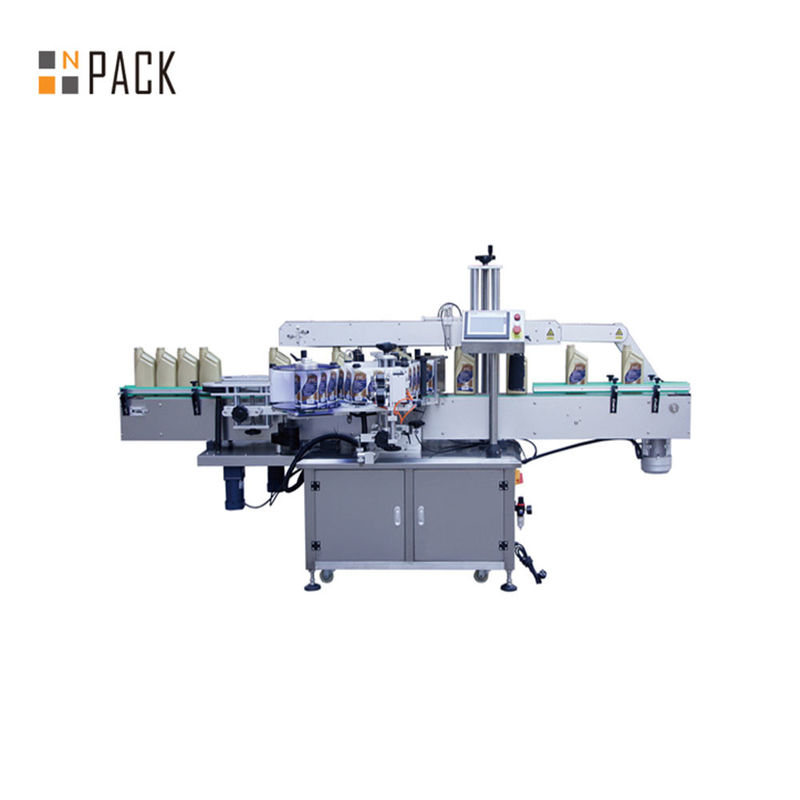

Automatic Front And Back Labeling Machine for Bottle
The front and back bottle labeling machine boasts a fully automatic, robust, and linear design. It's the perfect solution for applying labels on both the front and back sides of flat, round, oval, square, and rectangular-shaped bottles of various sizes. This versatile model is exceptionally user-friendly and built to last. With a maximum output of up to 200 labels per minute, depending on the product and label size, it offers impressive efficiency.
Equipped with the latest product alignment system synchronized with the top holding belt system, this vertical equipment ensures precise label placement. It features a processor-controlled label dispensing system and sensing system for labels and products. Additionally, the machine incorporates a unique single-point synchronized speed control system.
Furthermore, it includes a sophisticated label length detection system that eliminates the need for manual feeding and storing of label length data. Instead, the system automatically stores and retrieves the label size details, streamlining the process and reducing downtime. This preset system saves time, reduces overall costs, minimizes machine downtime, and boosts productivity.
Key Features
1. Label size data input/retrieval is not required.
2. No need for change parts for label size, feed worm, or pocket system when adjusting product size.
3. Single-point online speed variation control.
4. Synchronized speed of label dispensing, conveyor, and top hold belt system.
5. Virtually maintenance-free machine.
6. Easily adjustable label application height.
7. User-friendly label placing adjustments.
8. Self-protected against voltage fluctuations.
9. Compatible with on-line inkjet and contact coding systems.
10. Suitable for partial, full wrap-around, and overlap labeling.
11. Built-in A.C. variable frequency drive system.
12. Fully finished with stainless steel.
Parameter
| Labeling Speed (pcs/min) |
120-200(relate to material and label size) |
| Labeling Accuracy (mm) |
±1.0mm(material and label sizes are not counted in) |
| Label Size (mm) |
(L)10-300mm(H)10-250mm |
| Material Size(mm) |
Φ20-φ120mm(H)40-400mm |
| Roll Inside Diameter (mm) |
φ76mm |
| Roll Outside Diameter (mm) |
Max:Φ320mm |
| Machine Size(mm) |
(L)2800*(W)1400*(H)1400(mm) |
| Power Supply |
AC220V50Hz/60Hz1500W(Can be customized ) |
Product Detail
Workflow:
Manual positioning of applied products (on conveyor belt or bottle handling turntable) >> Automated sorting, alignment, and conveyance of products >> Product Inspection >> Product Labeling >> Collection of labeled products (entering subsequent processes) >> Product Removal.
Optional features and components:
1. Thermal printer: This printer can imprint production date, expiration date, batch number, etc. Marking and labeling processes are synchronized to enhance production efficiency.
2. Inkjet printer: Compatible with leading inkjet printers on the market, it can apply codes precisely onto designated areas of labels, seamlessly integrating with the labeling machine.
3. Universal sensor: Conventional sensors may not detect transparent labels; hence, a special electric eye imported from Germany is essential for accurate detection.
4. Reader: Reads QR codes, barcodes, and other data for easy establishment of a product database, facilitating product traceability.
