Product Description

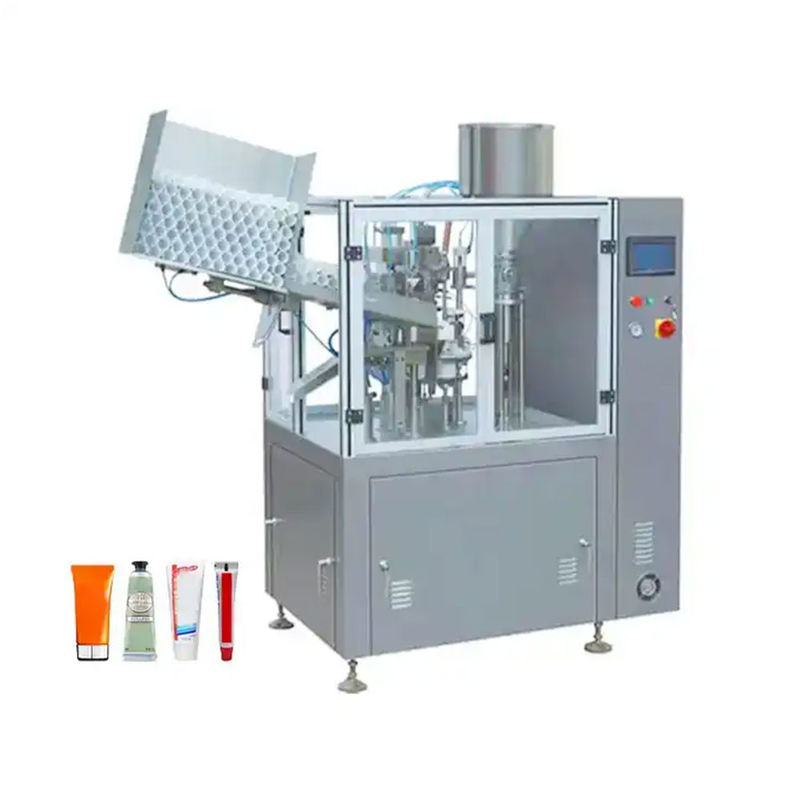

Automatic Ointment Tube And Sealing Machine
An ointment is a uniform, thick, semi-solid preparation, typically consisting of a greasy, dense oil (with a composition of 80% oil and 20% water) that possesses high viscosity. Primarily intended for external application to the skin or mucous membranes, ointments have a defined water number indicating the maximum allowable water content. They serve as emollients or vehicles for delivering active ingredients to the skin, offering protective, therapeutic, or preventive benefits, particularly when a certain level of occlusion is sought.
NPACK cream and ointment filling and sealing machine are designed to handle metal, plastic, aluminum, and laminate tubes. This versatile tube filling and sealing machine is capable of processing various types of viscous and semi-viscous products such as cosmetics, ointments, toothpaste, foodstuffs, pharmaceuticals, shaving creams, and more. Controlled by a PLC-based system and featuring a touch screen control panel, it delivers world-class performance.
Key Features:
1. Our ointment filling machine is suitable for filling various pasty and viscous fluids into plastic and composite metal tubes, followed by internal tube heating, sealing, and lot number printing. It finds applications in pharmaceuticals, food, cosmetics, and daily chemical industries.
2. Equipped with a high-quality touch screen and PLC control system, it offers convenient, visualized, and reliable non-touch operation.
3. Compact design with automatic tube feeding and fully enclosed driving part.
4. The fully automated control system handles tube washing, feeding, marking identification, filling, folding, sealing, code printing, and finished product output.
5. Pneumatic tube washing and feeding ensure accuracy and reliability.
6. Auto picketage is achieved through photoelectric inductance.
7. Easy adjustment and dismantling for maintenance purposes.
8. Intelligent temperature control and cooling system ensure easy operation and reliable sealing.
9. Quick and easy adjustment to accommodate multiple types of soft tubes for filling.
10. The parts in contact with materials are made of 316L stainless steel, ensuring cleanliness, hygiene, and compliance with GMP standards for pharmaceutical manufacturing.
11. Equipped with a safety device that shuts down the machine when the door is open, and overload protection for added safety.
Sealing and labeling of ointment tubes are also part of its capabilities.
Main Parameter
|
1
|
Filling volume
|
50-300ml/unit (Adjustable)
|
|
2
|
Filling accuracy
|
≦±1﹪
|
|
3
|
Capacity
|
2400-3000unit/hour, Adjustable
|
|
4
|
Tube diameter
|
Φ10-50 mm
|
|
5
|
Tube length
|
50-200mm
|
|
5
|
Hopper volume
|
40L
|
|
6
|
Power
|
380V/220V (Optional)
|
|
7
|
Air pressure
|
0.4-0.6 MPa
|
|
8
|
Equipped motor
|
1.1KW
|
|
9
|
Machine power
|
5kw
|
|
10
|
Inner wind motor
|
0.37kw
|
Product Details
Operation of the Ointment Tube Filling Machine:
This highly automated machine features a round rotary plate at filling stations where tubes are positioned. Initially, the filling operation takes place at the first station, after which the tubes move to subsequent stations. These stations perform folding operations on the tube, and after two folds, the tube advances to the next station for coding. The filled tube is then ejected to produce completely finished tubes.
Advantages of the Ointment Tube Filling Machine:
1. Enhanced production efficiency: The ointment tube filling line enables manufacturers to quickly fill products such as ointments, creams, and lotions into tubes, boosting production efficiency with its high speed and accuracy.
2. Reliable and consistent: Manual tube filling can result in significant variances in filling amounts. However, the ointment filling machine offers excellent consistency and reliability in filling operations.
3. Reduced labor costs: Filling tubes manually requires a large workforce, leading to increased production costs. By using an ointment filling machine, these costs are eliminated, making it a cost-effective solution.
4. Reduction in product wastage: The ointment tube filling machine ensures high accuracy and efficiency in filling, leading to reduced product wastage.
After-Sale Service:
1. Installation:
Our team of skilled technicians is prepared to dispatch and install your tube filling sealing machine. The service fee covers installation, travel, meal expenses, and more.
2. Training:
To ensure optimal performance of the tube filling sealing machine, we offer on-site or factory training sessions for dealers, machine operators, engineers, and technicians.
3. Guarantee:
Expect efficient service when repairing the tube filling sealing machine, along with a one-year quality assurance period, parts supply, and prompt troubleshooting assistance.
4. Consulting Service:
Take advantage of our complimentary consultation service. Our professional sales team will assist you in finding the most suitable solution, complete with CAD drawing designs for the tube filling machine.
5. Technical Support:
Benefit from our all-weather, long-term technical support. Simply reach out to us via email or phone, and we'll provide quick feedback, ensuring your peace of mind.
6. Spare Parts:
Included during transportation are a set of vulnerable spare parts for your tube filling machine at no additional cost. Additionally, you can order a comprehensive range of high-quality parts at any time.
