Automatic Aluminium Tube Filling And Sealing Machine Manufacturers

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-

Detail Information

Highlight:

aluminium tube filling and sealing machine manufacturers

,

aluminum tube filling and sealing machine

,

automatic tube filling and sealing machine

Product Description

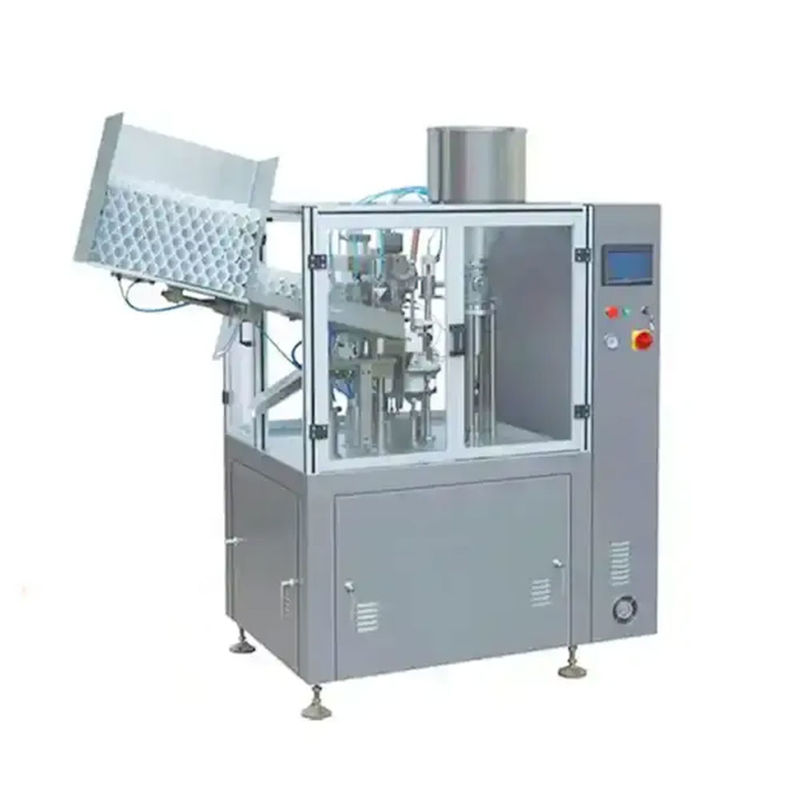

Automatic aluminium tube filling and sealing machine manufacturers

The automated aluminum tube filling and sealing apparatus is designed for use with metal soft tubes. Capable of performing automatic color mark positioning, filling, folding, batch coding, and ejecting finished products, all within a single machine. This versatile equipment finds wide application across pharmaceutical, commodity, food, and chemical industries, including products such as ointment, toothpaste, AB glue, and shoe polish.



This automated system operates with 16 stations, wherein operators manually load aluminum tubes into the tube feeding box. Subsequently, the machine autonomously advances the tubes into the tube base. The next station incorporates an automated eye-marking system, along with automatic filling and crimping functionalities. A filling sensor automatically verifies the presence of tubes before initiating the filling process, thereby preventing erroneous filling when no tubes are detected. The filling process is facilitated by cylinder-driven mechanisms, with precise control over filling capacity and accuracy ensured through cylinder adjustments.



Work Process

The metal tube is manually placed into position, utilizing mechanical transmission for relocation, while a photoelectric detection device verifies its alignment within the designated tube position. Material is then quantitatively injected into the tube via a metering pump, followed by the sealing mechanism for tube closure, printing, and automatic release of the sealed finished product.



Parameter

1
Filling volume
50-300ml/unit (Adjustable)
2
Filling accuracy
≦±1﹪
3
Capacity
2400-3000unit/hour, Adjustable
4
Tube diameter
Φ10-50 mm
5
Tube length
50-200mm
5
Hopper volume
40L
6
Power
380V/220V (Optional)
7
Air pressure
0.4-0.6 MPa
8
Equipped motor
1.1KW
9
Machine power
5kw
10
Inner wind motor
0.37kw

Main Features:
1. Crafted from premium-grade stainless steel SS 304 for durability and reliability;
2. Components in contact with the product are constructed from high-quality stainless steel SS 304 or SS 316 (optional);
3. Seamlessly control sealing parameters and processes via touch screen and PLC, with the ability to save settings;
4. Filling accuracy error: <±1% of volume;
5. Effortlessly perform single-sided coding with a variety of included font options;
6. Incorporates double fold closing mechanism, with multiple tail folding choices available;
7. Compatible with all-aluminum tube types for versatile operation.

Application:
A filling and sealing apparatus for aluminum tubes finds utility in packaging cosmetics, pharmaceuticals, chemicals, and food items. Tailored for managing sizable and moderate-sized batches or production runs, this machine is adept at handling various types of jobs.


After-sales Support
1. Installation:
Our team of skilled technicians is ready to deploy and install the Tube and Sealing Filling Machine. The service fee covers installation, travel, meal expenses, and more.

2. Training:
To maximize the efficiency of the tube filling machine, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.

3. Warranty:
When it comes to servicing the tube filling sealing machine, expect prompt service, a one-year quality assurance period, parts supply, and quick troubleshooting assistance.

4. Consultation Service:
Take advantage of our complimentary consultation service. Our knowledgeable sales team will guide you to the most appropriate solution, complete with CAD drawing designs for the tube filling and sealing machine.

5. Technical Assistance:
Benefit from our round-the-clock, long-term technical support. Simply drop us an email or give us a call, and we'll provide prompt assistance, ensuring your peace of mind.

6. Spare Parts:
Included during transportation are a set of critical spare parts for the tube filling and sealing machine at no additional cost. Additionally, you can order a comprehensive range of high-quality parts at any time.
