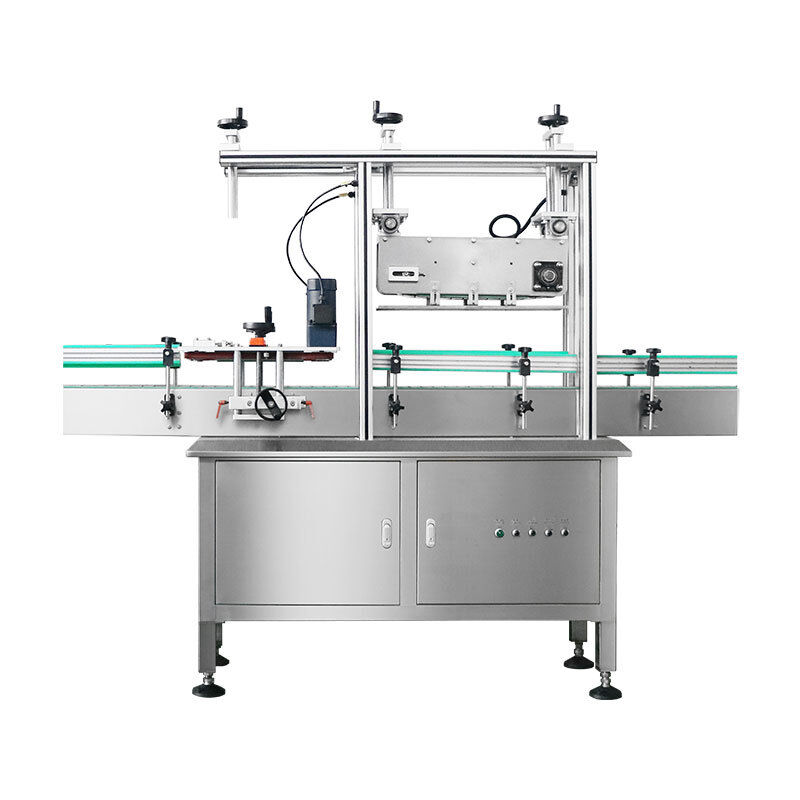

Automatic Snap Cap Capping Machine
The Automatic Snap-Cap Capping Machine provides a fully automated packaging process that will allow you to quickly and accurately attach snap-on caps to your bottles, jars, and other types of containers. With its linear configuration, this equipment will provide you with a high-speed, consistent capping operation that can be used in many different areas of the packaging industry.
The machine is designed with an integrated system for automatically feeding caps, loading caps onto bottles, and then pressing the caps onto the bottles. The machine uses a synchronized chain plate design to allow for smooth cap placement and pressing while preventing damage to the surface of the bottle. The machine also features variable frequency speed control which will enable the user to make adjustments based upon the size of the bottle being processed and the desired rate of production.
Made primarily from SUS304 stainless steel, this equipment has long-term durability and reliability. The machine can use either a vibrating bowl or a cap elevator as its cap feeding mechanism. It may also include a PLC control system and touch screen for ease of use.
Suitable for use in the food, beverage, cosmetic, and chemical industries; this snap cap capping machine has the capability of operating as a stand alone unit or as part of a fully automated packaging line.
Main Features of Snap Cap Capping Machine
An automated cap feeder is available in two types (vibrating bowl and/or cap elevator) to accommodate various cap feeding applications.
1.Smooth cap pressing
The synchronous chain plate mechanism provides smooth cap applications without scratching.
linear arrangement: allows you to handle various sizes of bottles without having to frequently make changes to parts.
2.Continuous Capping
The upper press belt guarantees a steady, continuous cap pressing process while the product is being made.
3.SUS304 Stainless Steel
Durable stainless steel frame and body for consistent and reliable long-term performance.
An optional PLC Control is offered. The touch screen and PLC controls will allow you to make adjustments and operate your equipment easily.
4.Stable Performance
Simple structure, low failure rate, and easy maintenance.
Parameter
|
1
|
Model
|
NP-LC
|
|
2
|
Applied bottle range
|
100ml-1000ml 1000ml-5000ml
|
|
3
|
Applied cap size
|
Dia:12-120mm
|
|
4
|
Yield of capping
|
>99%
|
|
5
|
Power Supply
|
220V 50HZ
|
|
5
|
Power Consumption
|
<2KW
|
|
6
|
Air Pressure
|
0.4-0.6Mpa
|
|
7
|
Speed Control
|
Frequency Conversion
|
|
8
|
Single machine noise
|
<=70Db
|
|
9
|
Weight
|
850kg
|
|
10
|
Dimension (LxWxH)
|
2000x1100x1800(mm)
|
|
11
|
Production Capacity
|
5000－7200 bottles/h
|
Product Details
Advantages of Using an Automatic Snap Cap Capping Machine
By choosing an automatic Snap Cap Capping Machine, manufacturers will be able to improve the way they package their products and cut down on manual processes.
1.Improved Productivity: Automatic cap feeding and pressing will allow for reduced labor costs associated with manual operations and will facilitate ongoing production.
2.Consistent Quality for Cap Application: The synchronous pressing action helps create uniform application of caps.
3.Flexible Bottle Handling: This linear design allows you to handle various sizes of bottles and various packaging types.
4.Reliable Machine Construction: SUS304 stainless steel offers a long-lasting product that can resist corrosion.
5.Flexible Feeding Options: Vibrating bowl and cap elevator configurations may be selected based on the specific type of cap being fed.
6.Easy to Use: Optional PLC controls and a touch screen display make adjusting the machine easy to use.
Because of these benefits, the automated pressing capping equipment is a good option for companies that wish to improve their process of packaging bottles.
Why Choose Our Automatic Snap Cap Capping Machine?
The Snap Cap Capping Machine has an automatic cap feeding function, accurate pressing capabilities, and a linear design which allows users to alter the machine's location to fit their needs. The machine is made from SUS304 stainless steel and can be customized with various feeding options, allowing it to adapt to numerous manufacturing settings.
The machine is suitable to be used as a stand-alone machine, or can be combined with other equipment to form an automated filling and packaging system. It is a very practical and effective alternative for companies looking for efficient snap-on cap sealing equipment.
You may now contact us to review with you your bottle specification, sample caps and production needs.
