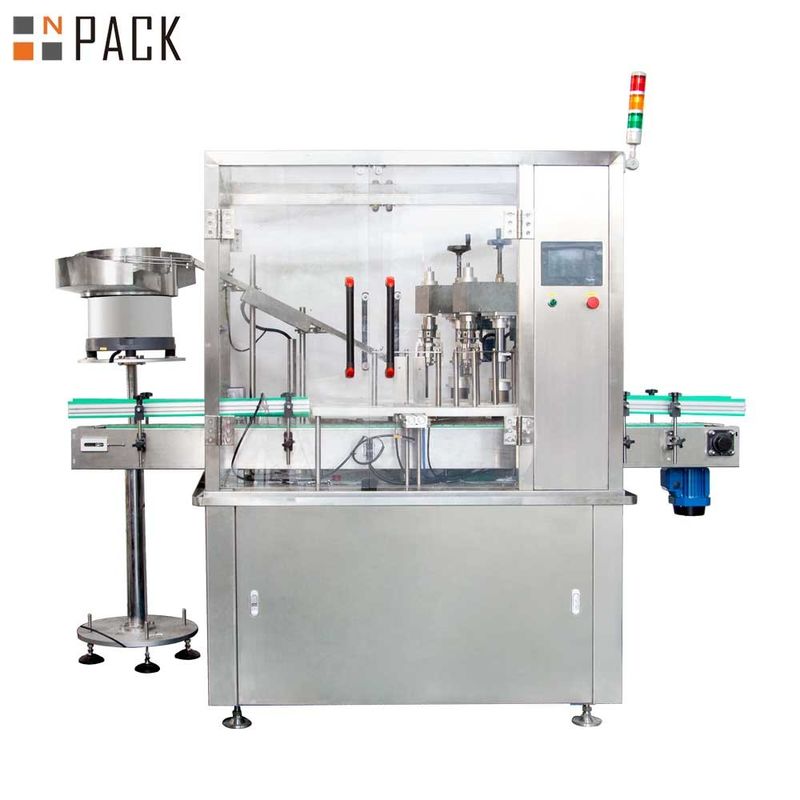

Automatic PET Aluminium Bottle Capping Machine
The PET Aluminium Bottle Capping Machine is a rotary automatic, high-speed, capping machine that can seal PET bottles using aluminium ROPP caps. This machine uses a multiple-head sealing system to provide accurate, tight, and consistent capping on an automated production line.
The machine uses a fully-automated cap-sorting and automatic-picking system to load and position caps prior to sealing. This machine has a highly advanced PLC control system, as well as a user-friendly color touchscreen display that allows for easy programming of parameters.
The machine has been designed with multiple types of capping head options that will allow for varying levels of production. The machine is made out of high quality, long-lasting SS304 Stainless Steel. It has been built using all GMP-compliant product-contact parts and it also has received CE certification. Therefore, this machine is an excellent option for use in a clean environment as well as providing a dependable way to seal PET bottles with aluminum caps.
Key Features of PET Aluminium Bottle Capping Machine
1.High-Speed Rotary Capping
provides a high-efficiency and uniform seal for aluminium ROPP caps.
Automatic supply of caps with automatic sorting. Automatic supply of caps keeps the production going.
2.Correct Cap Placement
Self-picking feature for accurate cap placement prior to sealing.
The multiple head design can be customised to modify the number of capping heads to meet production needs.
3.Planetary Sealing Rollers
Apply an even amount of roller pressure for a consistent seal that is both strong and reliable.
4.PLC Control System
Includes a full-colour touch screen for the convenient adjustment of system parameters and operation of the equipment.
5.Stainless steel (304 grade)
durable and rust-resistant to give years of service.
6.GMP Compliant Design
All product-contact parts of this equipment are designed and built to meet the engineering design requirements of GMP (Good Manufacturing Practices).
7.Easy to use and maintain
This product will make your daily use and maintenance of your system easier.
8.CE Certification
Compliant equipment meets applicable CE requirements.
Parameter
| Model |
NP-PC-1 |
| Capacity |
1800-2000 b/h(Customized capacity based on demand) |
| Suitable cap |
Aluminum Cap |
| Yield of cap |
99% |
| Dimension |
2000x1000x1500mm |
| Power consumption |
0.8KW |
| Weight(kg) |
600kgs
|
Product Details
Working Process of Automatic ROPP Capping Machine
This Automatic Three-Operation Integrated PET Aluminium Bottle Capping Machine combines all three operations into a single automatic process.
1.Automatic cap sorting
Aluminium ROPP caps are automatically sorted into the correct position for the capping operation.
2.Automatic Cap Insertion
The caps are picked up by a self-pickup system and then placed accurately on the top of each bottle's opening.
3.Automatic Cap Sealing
Bottles are transported through a rotary multiple head sealing unit. This unit uses planetary motion roller systems to roll and tighten the aluminium caps to make a complete and secure seal.
This combination will help to increase the efficiency of the packaging processes, reduce the amount of manual labour and get consistent results in terms of sealing quality during the manufacturing process.
FAQ About PET Aluminium Bottle Capping Machine
1.Can the number of capping heads be customized?
Yes, the machine is capable of accommodating various multi-head configurations. The number of sealing heads used will be based on what is needed for the production rates desired by the customer.
2.How does the automatic cap feeding system work?
The automatic sorting of bottle caps will place the caps into the correct order for packaging, and then the self-selecting device will automatically pick each cap from the ordered line and place it on to its respective bottle prior to sealing.
3.What control system does the machine use?
A PLC Control System and a Color Touch Screen Panel are used to control the machine so that the operator can easily control the machine and also change various parameters.
4.What materials are used in the machine construction?
The machine is built from robust SS304 stainless steel and contains parts that make contact with products, which have been manufactured using good manufacturing practices (GMP) engineering standards.
5.Can this machine be integrated into an automatic production line?
Yes, the PET Aluminum Bottle Capping Machine can be integrated with automated packaging lines. The machine’s setup can be changed based on the speed of the production line and the individual needs of each line.
