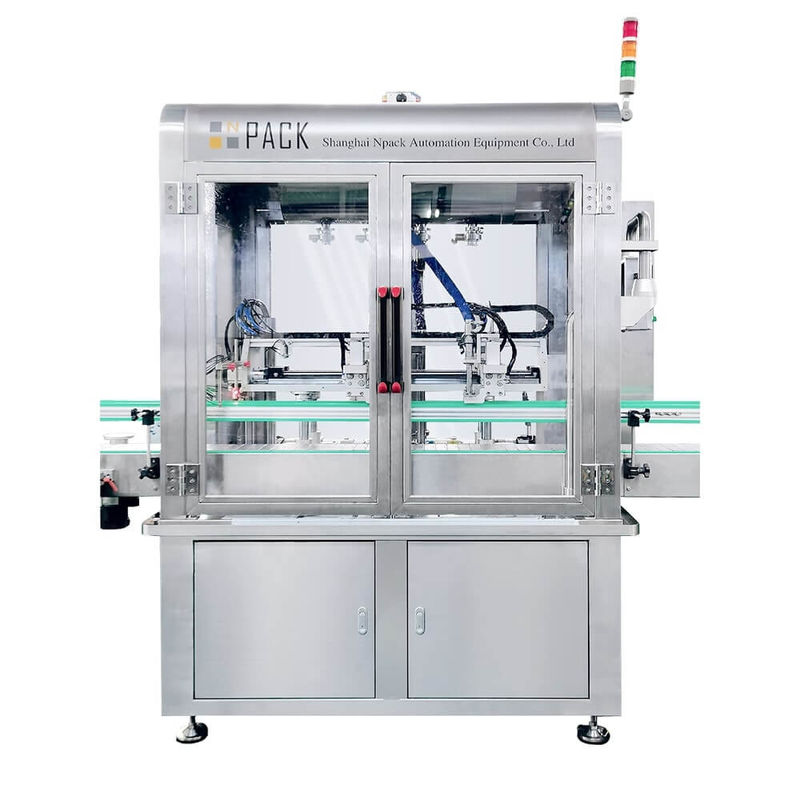

Automatic Servo Motor Viscous Liquid Tracking Filling Machine

Automatic Liquid Tracking Filling Machine

The tracking filling machine is a high-speed automatic solution designed for continuous liquid filling without stopping bottles. Using advanced tracking technology, the filling nozzles move synchronously with containers on the conveyor, enabling smooth, non-stop operation and significantly improving production efficiency.

Equipped with a servo-driven piston system, the machine ensures precise and stable filling for a wide range of products—from low-viscosity liquids to creams and pastes—while effectively preventing dripping and overflow. Its multi-head design further enhances output, making it suitable for small to large-scale production lines.

Widely applied in daily chemical, cosmetics, and detergent industries, the tracking filling machine offers high accuracy, strong adaptability to different bottle sizes, and reliable performance for modern automated packaging lines.

Main Feature

1.High production efficiency

Equipped with 2 filling nozzles, the machine achieves a stable output of 40–50 bottles per minute, suitable for medium to high-speed production lines.

2.Strong versatility

Designed to quickly adapt to different bottle shapes, sizes, and a wide range of liquid products, ensuring flexible production.

3.Easy cleaning & maintenance

Uses rotor pump control and supports optional CIP (Clean-in-Place) systems for efficient and hygienic cleaning.

4.User-friendly operation

Intuitive touchscreen interface allows operators to easily set parameters and control the filling process.

5.Anti-foaming filling

Up-and-down filling movement helps reduce foam generation, ensuring smooth and stable filling performance.

6.High filling accuracy

Provides precise dosing with accuracy up to ±1% (depending on product characteristics), ensuring consistent quality.

7.Durable and leak-proof design

Features a hard-chrome treated cylinder and optimized valve structure for long service life and reliable, leak-free operation.

8.Intelligent safety function

 “No bottle, no filling” system effectively avoids waste and improves overall production efficiency.

9.Flexible bottle handling

Adjustable positioning devices make it easy to accommodate different bottle shapes and production requirements.

10.Hygienic and sterilizable system

Designed for easy cleaning, supporting online cleaning and high-temperature sterilization to meet strict hygiene standards.

11.Premium material construction

 All product-contact parts are made of high-quality 304 stainless steel to ensure safety and corrosion resistance.

12.Compact structure

Space-saving design reduces floor space requirements while maintaining high performance and production capacity.

Product Details

What are the key components of a tracking-style filling machine?

1. Filling valve & metering system

  Controls liquid flow on/off and ensures accurate dosing, typically using piston cylinders measurement systems.

2. Servo tracking & motion system

  Drives the filling heads to move in sync with bottles during filling and enables fast return to the starting position after each cycle.

3. Bottle conveying system

  Includes conveyors, star wheels, or screw feeders to separate and transport bottles into the filling zone at consistent spacing.

4. Control system

  A PLC-based system integrated with sensors to manage synchronization, filling timing, and precise volume control.

5. Machine frame & lifting structure

  Provides stable support for the machine and controls the vertical movement of the filling heads during operation.

How does a tracking filling machine work?

The working principle of a tracking filling machine is to complete the filling process while the filling heads move synchronously with the bottles, eliminating the need for the conveyor to stop.

1.Bottle infeed

Bottles are continuously fed onto the conveyor and spaced evenly using a star wheel or screw system to ensure stable positioning.

2.Motion synchronization

A servo-driven system detects the bottles and moves the filling heads forward at the same speed, keeping both in a synchronized “relative static” state.

3.Filling process

While in motion, the filling heads descend and open the valves to dispense the required product. Precise dosing is achieved through flow meters or piston control systems.

4.Return movement

After completing the filling cycle, the heads quickly return to their original position, preparing for the next group of bottles and maintaining continuous operation.
