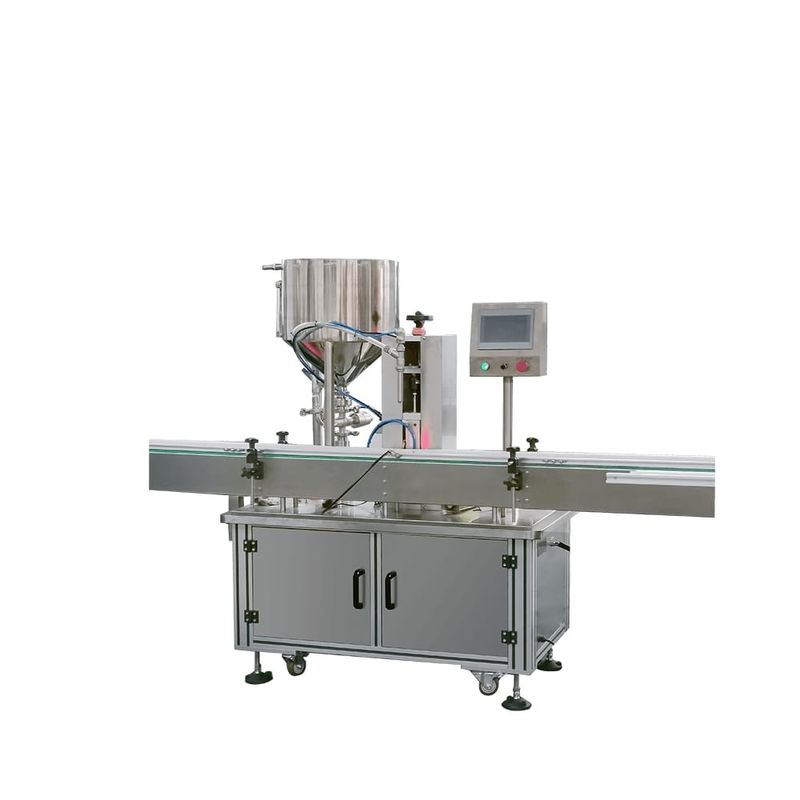

Precision Automatic Single Head Glass Jar Cosmetic Product Filling Machine

 Automatic Cosmetic Product Filling Machine

Our cosmetic product filling machine with a single-head lobe pump is designed for high-precision, foam-free filling of a wide range of cosmetic products — including lotions, creams, gels, and serums. It handles both low- and high-viscosity materials with ease, making it ideal for personal care manufacturing.

Driven by an independent servo motor, the lobe pump ensures consistent and accurate filling, helping maintain product quality and production efficiency.

This machine is widely used in the cosmetics, food, pharmaceutical, and daily chemical industries. It can be combined with a single-head capping machine and a round bottle labeling machine to form a complete, space-saving packaging line — a perfect solution for small to medium-sized cosmetic producers.


Rotor Pump Filling Machine Main Feature

• High-Speed Performance
  Capable of filling 15–25 bottles per minute with a single nozzle, ideal for medium-speed production lines.

• Versatile Application
  Supports quick changeover between different bottle sizes and product types, enhancing production flexibility.

• Hygienic and Easy to Maintain
  Utilizes a rotor pump system for clean, efficient filling with minimal residue.

• User-Friendly Interface
  Equipped with an intuitive touch screen control panel for easy operation and parameter adjustment.

• Anti-Foaming Filling
  Supports up-and-down nozzle movement during filling, effectively preventing foam generation.

• High Filling Accuracy
  Achieves an accuracy of ±0.5%, depending on product characteristics and filling volume.

• Leak-Proof Design
  Features a hardened and ground chromium-plated filling cylinder and custom-designed filling valve to prevent leakage.

• No Bottle, No Fill
  Smart sensor ensures filling only occurs when a bottle is present, avoiding waste and spills.

• Custom Positioning Systems
  Tailored bottle positioning devices can be designed to match your specific bottle shapes and sizes.

• Automated Cleaning System
  Includes an automatic CIP (clean-in-place) function, with one-touch cleaning and drainage via the touch screen — no manual disassembly required.

• Hygienic Construction
  All material contact parts are made of high-grade 304 stainless steel, ensuring durability and compliance with sanitary standards.

• Space-Saving Design
  Compact footprint, ideal for limited production spaces.

• Quick Bottle Changeover
  No need to adjust the traditional cylinder or nozzle positions when changing bottles — tool-free adjustments save significant time during setup.

Product Parameters

High Pressure Endure SS Hose and Sanization Filling Head

1.Food grade 304ss hose
2.Shut off filling heads
3.With drop collection tray
4.High filling accuracy
5.Diving Nozzles are optional for bubble sauce,like honey
6.304SS Food contruction,no dead corner
7.High quality and food grad O rings and seals inside of the nozzles

No Dead Corner Hopper

1.Mixing system optional
2.CIP system optional
3.304SS constuction material, 316SS for option
4.Mixing and heating fuction for potion

Automatic Lobe Pump Take Off System

1.Easy but High Clean---rotor pump control
2.Wide Application--- fast switching for various bottles and products

ESG Valve
1.Easy disassembly three way   connectors
2.ESG long life valve and high performace
3.ESG valve to gurantee the shut off accuracy and more stably
4.Sutiable for thin to viscous liquid


High Quality Hose

Adapt 304/316 stainless steel

hose characteristics:
1. High strength, good seismic resistance, strong external impact resistance.
2,.strong corrosion resistance, high temperature resistance, high pressure, large flow, wide range of use
3. Low coefficient of thermal expansion, strong resistance to high temperature, slow thermal expansion and cold contraction, not easy to leak;


After-sales service

• Installation
  Our skilled technicians are available for on-site installation. The service fee covers installation, travel expenses, meals, and related costs.

• Training
  We provide on-site or factory training for dealers, operators, engineers, and technicians to ensure smooth operation and optimal machine performance.

• Warranty
  Enjoy a one-year warranty with prompt repair services, parts supply, and fast troubleshooting support.

• Consultation Service
  Our professional sales team offers free consultation, helping you select the best solution and providing CAD drawing designs tailored to your filling machine needs.

• Technical Support
  Access 24/7 technical support via email or phone for timely assistance whenever you need it.

• Spare Parts
  A basic set of spare parts is included free with your machine shipment. Additional high-quality parts are available for order anytime.

FAQ

1. What is a Single Head Lobe Pump?

A single head lobe pump is a type of positive displacement pump that transports fluid by creating volume changes within the pump chamber through the rotation of a rotor. Its core component is a rotor (such as a single screw, gear, or cam structure) that forms a sealed chamber with the pump casing. As the rotor turns, it enables the suction and discharge of liquids.

2. What Types of Media Are Suitable for a Single Head Lobe Pump?

This pump is suitable for medium to high-viscosity fluids (such as lubricating oil, asphalt, and adhesives), slurries containing particles (with wear-resistant design), and corrosive liquids (requiring corrosion-resistant materials like stainless steel or fluoroplastics). However, it is not recommended for low-viscosity fluids (such as water) or volatile media.

3. What Are the Advantages Compared to Other Pumps (e.g., Centrifugal Pumps, Gear Pumps)?

• Excellent adaptability to high-viscosity fluids with stable flow output

• Strong self-priming capability

• Can handle particle-containing media (with special design)

• Low shear force, ideal for shear-sensitive materials such as food and pharmaceuticals
