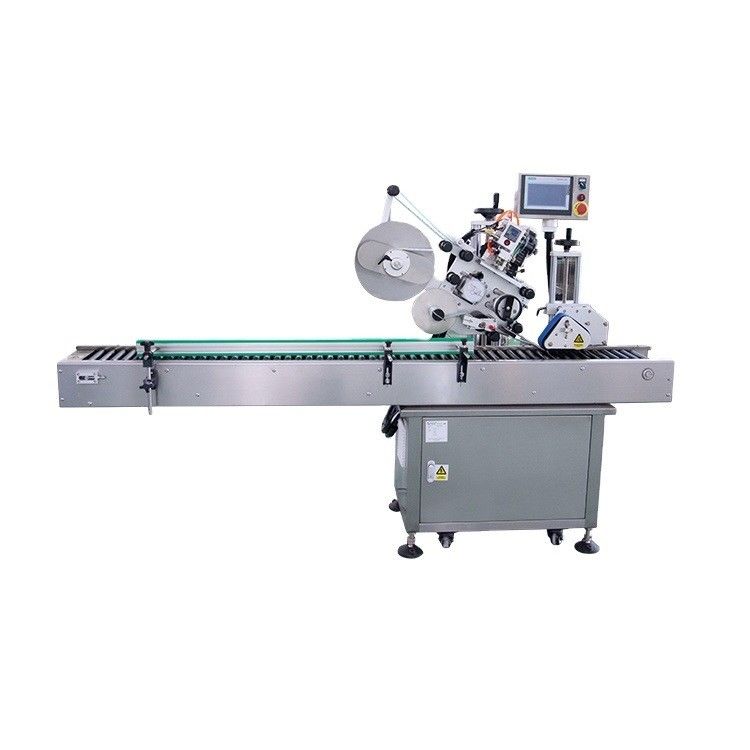

Automatic Horizontal Laboratory Hose Labeling Machine
The automatic horizontal labeling machine is designed for precision labeling of cylindrical objects, particularly those with unstable positioning. It employs advanced intelligent electric eye technology and reliable PLC control to ensure accurate label segmentation and application. Using air pressure, adhesive stickers are suctioned onto the labeling head, enabling efficient labeling either fully or partially around the object's circumference. The horizontal transmission and labeling method provide enhanced stability and improve labeling efficiency.
This machine offers optional features such as a coding machine or an inkjet printer integrated into the labeling head, allowing for the direct printing of production dates, batch numbers, and barcodes onto the labels. Alternatively, an inkjet printer mounted on the conveyor belt can print this information on the products before or after labeling, further enhancing its versatility and functionality.
Features:
1.High-Speed Labeling Efficiency: Utilizes a horizontal roller conveying mechanism with an inclined conveying chain for automatic bottle guidance, ensuring stable conveying and labeling at speeds up to 300 bottles/min, significantly saving labor and materials.
2.Minimal Bottle Breakage: Features flexible bottle separation and labeling technology to ensure smooth operation, maintaining a breakage rate of less than 1 in 100,000.
3.Superior Labeling Quality: Advanced technology corrects label deviation, achieving high overlap at label heads and tails. Rolling-type labeling ensures labels are flat, wrinkle-free, and bubble-free, enhancing packaging aesthetics.
4.Reliable Stability: Equipped with an advanced electronic control system, including Panasonic PLC, touch screen, Sembcorp electric eye, and American Hampson label sensor, enabling stable 24/7 high-speed operation.
5.Intelligent Control: Automatic photoelectric tracking prevents mislabeling with features like “no object, no labeling,” automatic correction, and detection to reduce label waste.
6.Robust and Hygienic Design: Constructed from stainless steel and high-grade aluminum alloy, meeting GMP standards with a durable and visually appealing structure.
7.Enhanced Production Management: Includes fault alarms, production counting, power-saving mode, production target reminders, and parameter setting protection for streamlined operation.
Parameter
| Model |
NP-HL |
| Labeling speed(pcs/min) |
80-250(relate to material and label size) |
| Labeling accuracy(mm) |
±1.0mm(material and label sizes are not countedin) |
| Label size(mm) |
(L)15-300mm(H)10-150mm |
| Material size(mm) |
Φ20-φ120mm(H)20-300mm |
| Roll inside(mm) |
φ76mm |
| Roll outer diameter(mm) |
Max:Φ320mm |
| Machine size(mm) |
(L)1950*(W)1100*(H)1300(mm) |
| Power supply |
AC220V50Hz/60Hz1500W(Can be customized ) |
Scope of Application:
Label Types: Compatible with self-adhesive labels, adhesive films, electronic supervision codes, barcodes, and similar materials.
Product Types: Designed for small products requiring labels or films on cylindrical or small conical surfaces.
Industries: Commonly used in medicine, cosmetics, electronics, hardware, plastics, and other industries.
Applications: Ideal for labeling solid rubber bottles, oral liquid bottles, pen holders, lipstick containers, and similar items.
The Workflow:
Core Working Principle:
The automatic bottle separation wheel separates products and feeds them onto the conveyor belt (or products can be placed manually). Sensors detect the product as it moves along the conveyor and send signals to the labeling control system. The system then triggers the motor to dispense a label, precisely positioning it on the product. The labeling belt ensures smooth rotation for label application, completing the labeling process.
Operational Procedure:
1.Place the product on the conveyor chain roller.
2.Product is conveyed.
3.Product is inspected.
4.Label is dispensed.
5.Label is affixed.
6.Labeled products are collected.
After-Sale Service
1.Installation
Our skilled technicians are available to travel to your location for the labeling machine installation. The service fee covers all expenses, including travel, meals, and installation costs.
2.Training
We offer thorough training for dealers, operators, engineers, and technicians either on-site or at our facility to ensure the best machine performance.
3.Warranty and Maintenance
We provide a one-year warranty, including efficient maintenance, quick troubleshooting, and reliable replacement parts supply.
4.Consultation Service
Take advantage of our free consultation service. Our expert sales team will recommend tailored solutions and provide detailed CAD design drawings for your labeling machine.
5.Technical Support
Our technical support is available year-round via email or phone. Our team ensures fast responses to keep your operations running smoothly.
6.Spare Parts Supply
Each machine comes with a complimentary set of essential spare parts. Additional high-quality spare parts can be ordered as needed for uninterrupted operation.
