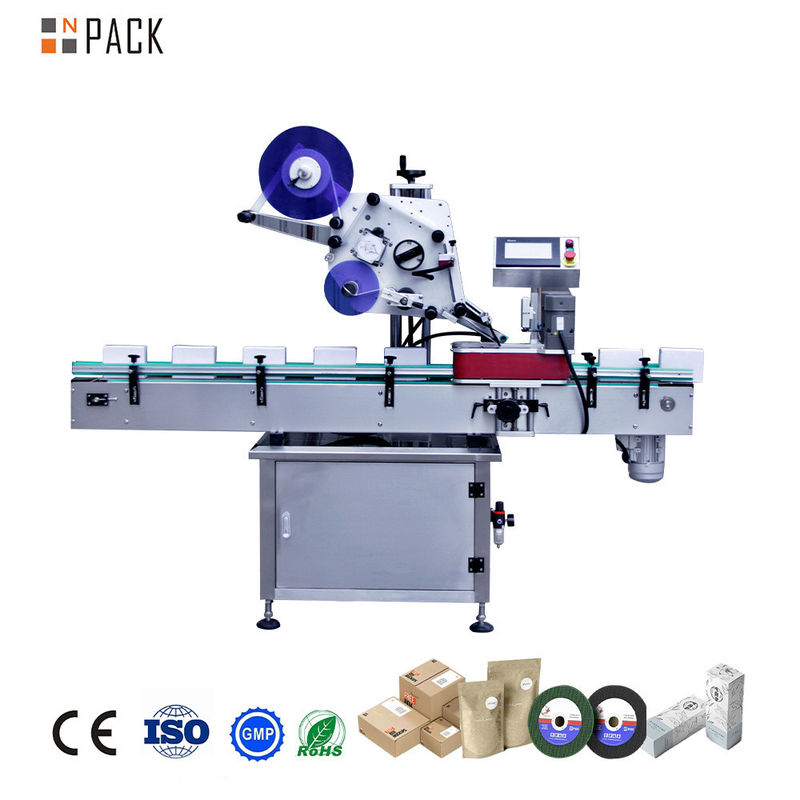

Automatic Top & Bottom Sides Labeling Machine
The automatic flat surface labeling machine is specifically designed for labeling all kinds of flat surfaces, including plastic sheets and protective films. It offers high precision labeling with no bubbles. The machine features an automatic identification function that adjusts the labeling head according to different products and labels.
Core Working Principle:
The sensor detects the product as it passes through, sending a signal back to the labeling control system. This signal is processed by the PLC, which then triggers the labeling process at the precise moment needed to apply the label in the correct position on the product. As the product passes through the calibration device, the label is firmly affixed, completing the labeling process.
Main Features:
1. The pagination technology utilizes a 2-stage friction principle with silicone soft material that is gentle on products, offering a wide range of thickness compatibility. It is ideal for thin products like cards and PE tapes, enabling efficient automatic separation.
2. The traditional power control method has been improved, ensuring that the labeling position remains unchanged even when the speed is adjusted during the labeling process, making label calibration much simpler.
3. Equipped with a renowned brand PLC and label sensor, the machine provides enhanced stability during operation.
4. The full stainless steel body design not only offers a more attractive appearance but also occupies less space, making it easier to use.
5. The new label winding design ensures foolproof operation, while the traction mechanism has been made more user-friendly.
|
|
|
Machine Size
|
1600(L)×1000(W)×1250(H)mm
|
|
Output Speed
|
20-100pcs/min depends on label and bottle size
|
|
Height Label Object
|
30-280mm
|
|
Bag size
|
max L60cm; max W 40cm; max H10cm
|
|
Label Height
|
15-140mm
|
|
Label Length
|
25-300mm
|
|
Pastes the sign precision
|
±1mm
|
|
Roll inside
|
76mm
|
|
Roll Outside Diameter
|
300mm
|
|
Power Supply
|
220V 0.8KW 50/60HZ
|
|
Power Supply
|
2800(L)×1650(W)×1500(H)mm
|
|
Weight of Labeling Machine
|
450Kg
|
List of Components
| List of Components |
| Description |
Brand |
| PLC |
Siemens |
| Touch Screen |
Siemens |
| Labeling head motor |
Panasonic |
| Transducer |
Delta |
| DC24V Electrical Source |
Delta |
| Checking Label Sensor |
Leuze |
| Checking bottle Sensor |
Keyence |
| Optical |
Keyence |
| SWITCH |
SCHNIDER |
| Emergency switch |
SCHNIDER |
Product Details
Product Application
After-sale Service
1. Installation:
Our team of experienced technicians is available to travel and install the labeling machine. The service fee includes installation, travel, meals, and other related expenses.
2. Training:
To ensure the labeling machine operates at its best, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.
3. **Guarantee:
For any repairs needed on the bottle labeling machine, we provide prompt service, a one-year quality assurance period, a supply of parts, and quick responses to troubleshooting issues.
4. Consulting Service:
Take advantage of our free consultation service. Our professional sales team will guide you to the best solution, including CAD drawing designs for the labeling machine.
5. Technical Support:
Enjoy round-the-clock, long-term technical support. Whether by email or phone, we provide quick feedback to ensure you can operate with peace of mind.
6. Spare Parts:
We include a set of essential spare parts for the labeling machine during transportation at no extra cost. You can also order a wide range of high-quality parts at any time.
