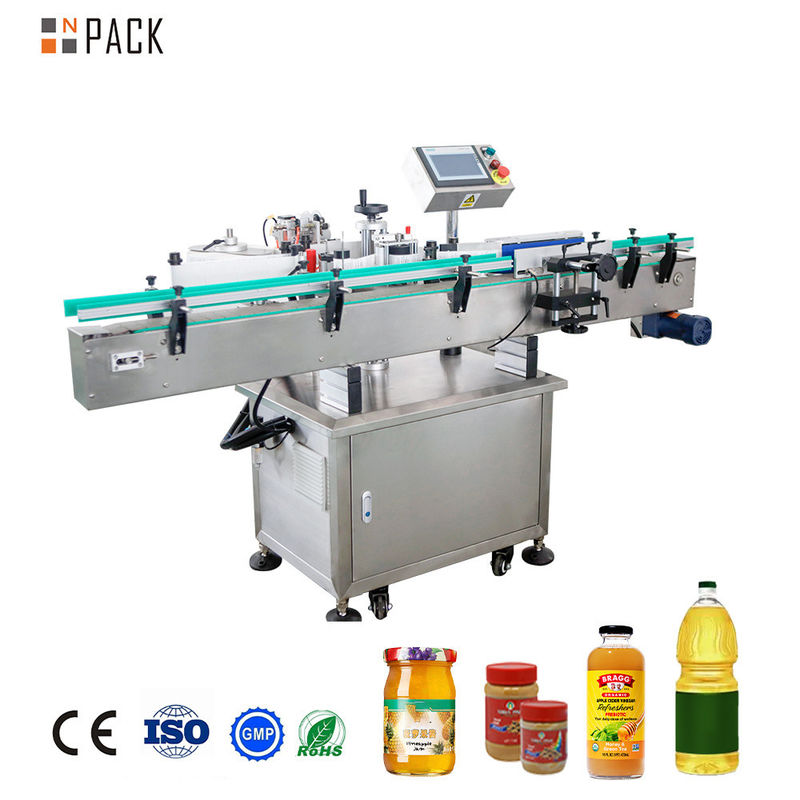

Round Bottle Vertical Self-adhesive Labeling Machine
The automatic vertical round bottle self-adhesive labeling machine is designed to achieve optimized production goals. The labeling process is automated, operation is simple, production speed is fast, and the labeling position is uniform, beautiful, and neat. It is suitable for labeling circular containers in the pharmaceutical, chemical, food, and other industries, capable of both full-circle and semi-circle labeling. An optional color-matching tape printer and inkjet printer can print production batch numbers, production dates, and other information simultaneously with labeling. This integration of labeling and coding reduces packaging processes and improves production efficiency.
Main Features
1. Touch Screen and PLC Control: User-friendly interface for easy operation.
2. Memory Recipes: Around 30 memory slots for labeling parameters, facilitating quick changes for different bottle sizes.
3. Label Detection: Low or missing label detection ensures accuracy.
4. Synchronized Speed Selection: Maintains consistent labeling speed.
5. Servo Motor Drive: Provides high accuracy and high speed for efficient labeling.
6. No Bottle, No Labeling: Ensures labels are only applied when bottles are present, reducing waste.
| Model / technical parameters |
NP-RL |
| Labeling speed (pcs/min) |
40-150
(relate to material and label size) |
| Labeling accuracy(mm) |
±1.0mm
(material and label sizes are not counted in) |
| Label size(mm) |
(L)20-280mm (H)30-144mm |
| Material size (mm) |
Φ20-φ100mm (H)40-200mm |
| Roll inside(mm) |
φ76mm |
| Roll outer diameter(mm) |
Max:Φ350mm |
| Machine size (mm) |
(L)2000*(W)850*(H)1450(mm) |
| Power supply |
AC220V 50Hz/60Hz 1500W |
Product Details
Working Principle
The sensor detects the passing product and sends a signal back to the labeling control system. At the appropriate position, the system controls the release of the label, attaching it to the product. After the product passes through the label applicator, the label is affixed to the product, completing the labeling process.
Optional Features and Parts
1. Coding Machine: A thermal coding machine prints the production date, expiration date, production batch number, etc. Coding and labeling are synchronized to improve production efficiency.
2. Inkjet Printer:Compatible with mainstream inkjet printers on the market, it allows for inkjet printing at the designated label position, perfectly integrating with the labeling machine.
3. Universal Sensor: Ordinary sensors cannot detect transparent labels, so special electric eyes imported from Germany must be used.
4. Reader: Reads QR codes, barcodes, and other information to facilitate the establishment of a product database for product traceability.
After-Sale Service
1. Installation:
Our team of skilled technicians is ready to travel and install the labeler machine. The service fee covers installation, travel, meal expenses, and other related costs.
2. Training:
To ensure optimal performance of the labeling machine, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.
3. Guarantee:
When repairing the bottle bottle labeling machine, we provide efficient service, a one-year quality assurance period, parts supply, and swift feedback for troubleshooting.
4. Consulting Service:
Take advantage of our complimentary consultation service. Our professional sales team will guide you to the most suitable solution, complete with CAD drawing designs for the labeling machine
5. Technical Support:
Benefit from our all-weather, long-term technical support. Simply drop us an email or give us a call, and we'll provide quick feedback, ensuring you can be carefree.
6. Spare Parts:
During transportation, we include a set of vulnerable spare parts for the labeller machine at no additional cost. You can also order a comprehensive range of high-quality parts at any time.
