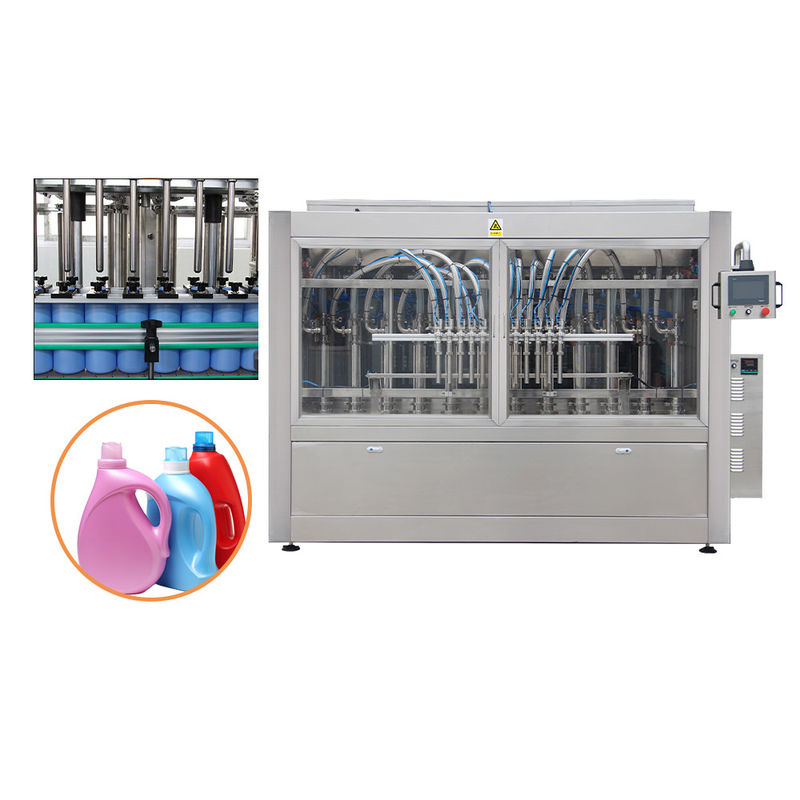

Automatic Anti-foam Liquid Foamy Detergent Filling Machine with Bottom-Up Nozzles

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: NPACK
Certification: CE Model Number: NP-VF

Detail Information

Packaging Type: Bottles,Cans Material Type: Liquid
Machine Size: 2400mm*1300mm*2150mm Filling Material: Liquid Soap, Shampoo, Body Wash
Machinery Test Report: Provided The Material: Stainless Steel
Filling Principle: Pressure Filling Error: <0.6%
Touch Material: SUS304 / SUS316L Automatic Grade: Automatic, Semi-Automatic, By Order
Bottle Type: Glass Bottle, Plastic Bottle Machine Material: SUS304
Application: Sauce, Paste, Jam, Ketchup
Highlight:

Automatic Anti foam Liquid Filling Machine

,

Bottom Up Nozzles Liquid Filling Machine

Product Description

Automatic Piston Type Liquid Detergent Filling Machine

Automatic Anti-foam Liquid Foamy Detergent Filling Machine with Bottom-Up Nozzles 0

Brief introduction of Liquid Detergent Filling Machine

When discussing liquid detergents and the machines used to fill them, their significance in contemporary life cannot be overstated. Liquid detergents have seamlessly integrated into daily routines, while liquid detergent filling machines play a pivotal role in ensuring efficient production of these essential products.



The detergent filling machine is a specialized piece of equipment engineered for filling various detergent types, encompassing detergents, dish soaps, disinfectants, and more. Employing advanced technology and precise filling systems, these machines guarantee the efficiency and accuracy of the filling process.



This equipment boasts several features that cement its status in the detergent production industry. Firstly, detergent filling machines typically feature intelligent control systems like PLC systems and frequency adjustment technology, enabling fully automated operations that significantly enhance production efficiency and product quality. Secondly, the equipment offers flexible adjustment capabilities, allowing operators to easily fine-tune the filling volume as required, ensuring precise and reliable filling for each product.



Moreover, detergent filling machines leverage advanced pump technologies such as piston pumps and rotary valve technology, effectively preventing product leakage and dripping during filling operations, thereby maintaining cleanliness and safety in the production environment. Some high-end machines are equipped with specialized bottle positioning devices, ensuring accurate alignment of each bottle with the filling nozzle to minimize waste and losses.



Our laundry detergent liquid filling machines are meticulously designed to cater to the evolving needs of the laundry detergent industry. We manufacture machinery tailored to meet your laundry detergent filling requirements and exceed your production objectives.

Product Detail

-Diving Filling

-Top Hopper
Automatic Anti-foam Liquid Foamy Detergent Filling Machine with Bottom-Up Nozzles 1 Automatic Anti-foam Liquid Foamy Detergent Filling Machine with Bottom-Up Nozzles 2

-Servo Motor

The servo controls the overall lifting and lowering of the filling nozzles to achieve diving filling

-Rotary Valve
Automatic Anti-foam Liquid Foamy Detergent Filling Machine with Bottom-Up Nozzles 3 Automatic Anti-foam Liquid Foamy Detergent Filling Machine with Bottom-Up Nozzles 4





Parameter of liquid detergent machine

Model
NP-VF-2
NP-VF-4
NP-VF-6
NP-VF-8
NP-VF-10
NP-VF-12
NP-VF-16
Heads/Nozzles
2

4

6
8
10
12
16
Range
100-500ML,100-1000ML,1000-5000ML
Capacity
base on 500ml
12-14 bpm
24-28 bpm
36-42 bpm
48-56 bpm
60-70 bpm
70-80 bpm
80-100 bpm
Air Pressure
0.6 Mpa
Accuracy(%)
±1
Power
220VAC SINGLE PHASE 1500W
220VAC SINGLE PHASE 3000W



Key Features of Our Liquid Detergent Filling Machine

  1. Precise Soap Filling Solution: Our cutting-edge soap filling system employs a piston-type metering pump, ensuring precise dispensing for various applications. Featuring a user-friendly quick-connect disassembly mechanism, it facilitates effortless cleaning and disinfection, meeting the stringent requirements set by top-tier liquid detergent filling machine manufacturers.

  2. State-of-the-Art Control System: Equipped with a sophisticated PLC control system and frequency control, our machine offers seamless automation, adhering to the highest industry standards established by leading liquid detergent filling machine manufacturers.

  3. Customizable Filling Options: Operators can easily tailor the filling amount via the intuitive touch screen interface, with the ability to adjust each piston independently, ensuring unparalleled accuracy. This customizable feature, synonymous with reputable liquid detergent filling machine manufacturers, ensures flawless and efficient filling processes.

  4. Innovative Piston Pump Design: Our filling cylinder incorporates a rotary valve-type piston pump, effectively eliminating drips during the filling process. This innovative design aligns perfectly with the quality benchmarks set by leading liquid detergent filling machine manufacturers.

  5. Precision Bottle Alignment: A specialized bottle positioning device guarantees precise alignment between bottles and filling nozzles, minimizing spillage and maximizing productivity—a standard upheld by esteemed liquid detergent filling machine manufacturers.

  6. Foam Control System: To address common foaming issues encountered with detergent liquids, our system utilizes a diving filling technique. By initially inserting the nozzles to the bottle's bottom and dispensing a base volume of liquid at low pressure, it effectively reduces foam formation. Subsequently, during high-speed filling, the nozzles rise with the liquid level, ensuring controlled filling to prevent foam from escaping the bottle neck. This innovative approach reflects our commitment to delivering top-tier solutions tailored to industry demands.
