Product Description

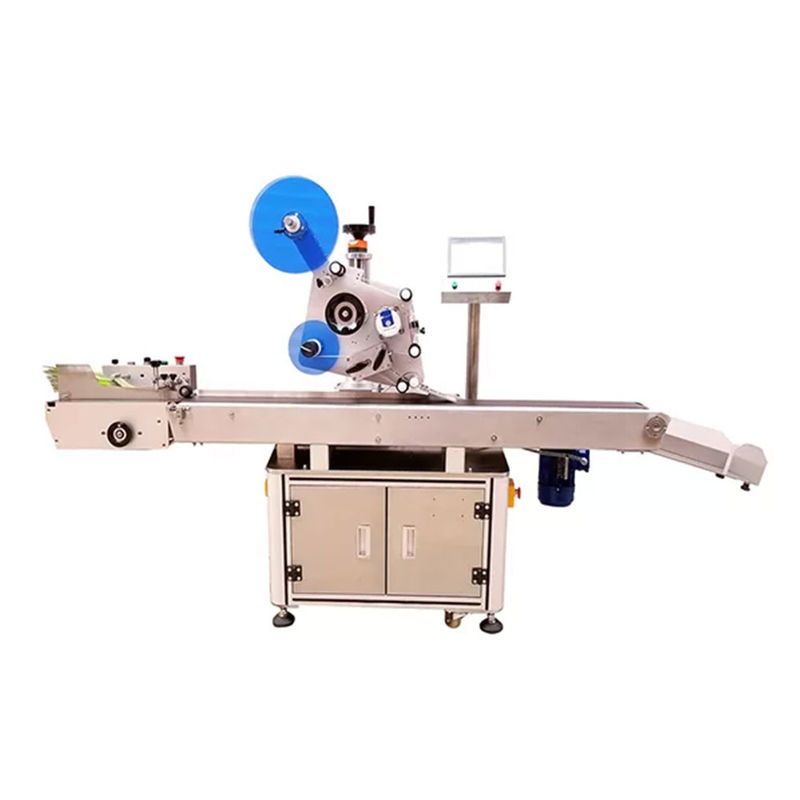

Automatic Mylar Bag Single-Sided Labeling Machine
The automatic page labeling machine is versatile, capable of handling various materials, dimensions, and shapes by neatly organizing them into stacks—such as cards, plastics, and paper products. It then separates these stacks into individual units for precise labeling, making it suitable for a wide range of items like plastic bags, paper, cardboard boxes, prepaid phone cards, and various telecommunications cards (e.g., IP cards, 200, 300-minute phone cards).
Following separation, it applies labels (such as security tags and barcodes) with high precision, ensuring no air bubbles under the label film. Additionally, this machine features an automatic product recognition system, enabling it to adjust and activate the appropriate labeling heads for different items automatically.
Advantage
1. Compact Mechanical Structure: Designed to occupy minimal space, this equipment is easy to move and integrate into production lines. It features a product alignment mechanism and a label correction system to ensure labels are placed with an accuracy of ±1mm.
2. Exceptional Labeling Quality: Provides smooth, wrinkle-free, and bubble-free labeling, fulfilling the demands for labeling on flat surfaces and items with significant curvature.
3. Versatile and User-friendly Adjustments: The combination of mechanical adjustments and smart label management allows for easy setup and changes between products, securing the label position after adjustments for quick and efficient swaps. It includes no-label and auto-detection features for enhanced convenience.
4. Advanced Control System: Equipped with a standard PLC, touchscreen, servo motor, and sensors for a highly secure and interactive operation. The interface includes comprehensive Chinese annotations and fault diagnosis prompts, simplifying operation and maintenance. Complete documentation supports equipment functionality, ensuring smooth operation.
5. Comprehensive Features: Includes a fault alarm, production counter, energy-saving mode for periods of inactivity, production target alerts, and parameter security managed by user permissions.
6. Reliable and Durable: Utilizes top-tier components for high sensitivity and reliable performance, with a robust frame and interchangeable parts for 24/7 operation, promoting safety and stability.
7. Safety and Hygiene: Constructed from stainless steel SUS304 and T6 aluminum alloy for durability and rust resistance, meeting GMP manufacturing standards and ensuring a safe and hygienic operation environment.
parameter
| Model |
Automatic Paging Sticker Labeling Machine |
| Driving Mode |
German Avery |
| Yield(pcs/min) |
30-200 |
| Operating direction |
Left or Right |
| Conveyor Speed(m/min) |
≤40 |
| Labeling Accuracy |
±1.0 mm |
| The inner diameter of label roll |
76 mm |
| The outer diameter of label roll |
350 mm(max) |
| The suitable size of label |
Width 15-160 mm length 15-300 mm |
| The suitable size of labeling objects |
Can customized |
| Printer use air |
5kg/cm ² |
| Voltage (In China) |
AC220V 50/60HZ Single phase |
| (Can customized as client need) |
| Power(w) |
1000W |
| Weight(kg) |
500 |
| Machine size |
2900(L)1200(W)1600(H)mm |
| (machine size can made as client need) |
Operating Mechanism
Items such as films, PE bags, cartons, and cards are initially placed in a stacked arrangement (with a set limit) within the paging mechanism. This mechanism then automatically separates each item, transferring it onto the conveyor belt. The conveyor employs vacuum suction to securely hold the items in place as they move. Once an item passes, a fiber optic sensor detects its presence and sends a signal to the labeling control system. Based on pre-configured settings, the control system dispenses a label at the precise location, adhering it to the item as it continues along the conveyor. As the item moves under a roller, the label is firmly applied.
Process Flow: The operator manually loads the items to be labeled -> the items are automatically singled out and moved along -> detection of the items occurs -> application of the labels to the items -> collection of the labeled items for removal.
Upgraded Options and Accessories
1. Print Module: This module features a thermal coder capable of marking items with crucial information such as manufacture and expiry dates, and batch numbers, ensuring labels and codes are applied concurrently to boost efficiency.
2. Precision Inkjet Accessory: Compatible with premier inkjet technologies, this accessory permits accurate ink placement on labels, perfectly integrating with the labeler for enhanced operational effectiveness.
3. High-Precision Sensor: Traditional sensors are unable to detect clear labels, requiring the adoption of a specialized sensor from Germany, engineered for accurate detection of transparent labels.
4. Barcode and QR Code Scanner: Equipped to scan various codes, this add-on assists in developing an extensive product database, bolstering the capability for thorough product tracking and authentication.
