Automatic Bag Medicine Bottle Horizontal Labeling Machine

Minimum Order Quantity : 1 Price : 5000USD/set to 20000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-HL

Detail Information

Highlight:

automatic machine for labeling

,

automatic bag labeling machine

,

Horizontal Labeling Machine

Product Description

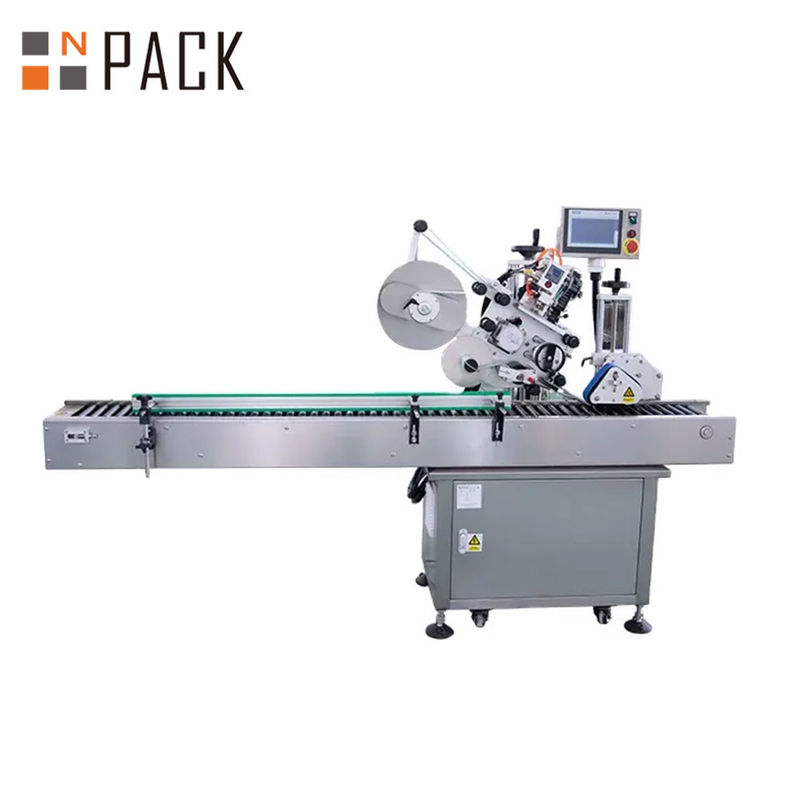

Automatic Medicine Bottle Horizontal Labeling Machine

The labeling machine employs advanced precision intelligent electric eye technology in conjunction with highly reliable PLC control to segment labels and facilitate labeling. Using air pressure to suction adhesive stickers into the labeling head enables efficient labeling. This system is suitable for labeling cylindrical objects with unstable positioning, allowing for labeling on either the circumference or half of it. Horizontal



transmission and labeling methods are adopted to enhance stability and increase labeling efficiency.

An optional coding machine or inkjet printer can be integrated into the labeling head to print essential information such as production dates, batch numbers, and barcodes directly onto the label.



Alternatively, an optional inkjet printer attached to the conveyor belt can print pertinent information such as production dates, batch numbers, and barcodes directly onto the product either before or after labeling.



Features:

1. Adoption of a high-speed, horizontal roller conveying mechanism with an inclined conveying chain ensures automatic bottle guidance and stable conveying and labeling. Achieves labeling speeds of up to 300 bottles/min, significantly reducing labor and material resources.

2. Low bottle breakage rate ensured through flexible bottle separation and labeling technologies, resulting in smooth labeling and a bottle breakage rate of less than one in 100,000.

3. Excellent labeling quality achieved through advanced labeling technology to correct label deviation. High overlap at the label head and tail, coupled with rolling-type labeling, ensures flat, wrinkle-free, and bubble-free labeling, enhancing packaging quality.

4. High stability guaranteed by an advanced electronic control system consisting of Panasonic PLC, display and control touch screen, Sembcorp needle-shaped electric eye, and American Hampson label electric eye. Supports 24/7 high-speed equipment operation.

5. Intelligent control features automatic photoelectric tracking, ensuring no object, no labeling, and automatic correction and detection functions to prevent missing labels and label waste.

6. Sturdy and hygienic construction predominantly crafted from stainless steel and high-grade aluminum alloy, meeting GMP production specifications with a firm, aesthetically pleasing structure.

7. Equipped with fault alarm, production counting, power-saving, production number setting prompt, and parameter setting protection functions for convenient production management.

parameter

Model NP-HL
Labeling speed(pcs/min) 80-250(relate to material and label size)
Labeling accuracy(mm) ±1.0mm(material and label sizes are not countedin)
Label size(mm) (L)15-300mm(H)10-150mm
Material size(mm) Φ20-φ120mm(H)20-300mm
Roll inside(mm) φ76mm
Roll outer diameter(mm) Max:Φ320mm
Machine size(mm) (L)1950*(W)1100*(H)1300(mm)
Power supply AC220V50Hz/60Hz1500W(Can be customized )

Scope of Application:

Label Types: Suitable for self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, and similar labeling materials.

Product Types: Ideal for small products that require labeling or film attachment to the circumferential surface or small cone surface.

Industries: Widely utilized in the medicine, cosmetics, electronics, hardware, plastics, and various other industries.

Examples of Applications: Includes labeling for solid rubber bottles, oral liquid bottles, pen holders, lipstick containers, and more.

The Workflow:

Core Working Principle: The automatic bottle separation wheel segregates products and automatically feeds them onto the conveyor belt (or products are manually placed). As the product moves along the conveyor, sensors detect its passage and relay signals to the labeling control system. Subsequently, the control system activates the corresponding motor, releasing a label to be affixed to the designated position on the product. The product proceeds through the labeling device where the labeling belt drives rotation, facilitating label application, thus completing the labeling process.

Operational Procedure: Place the product onto the center of the conveyor chain roller -> Product conveyance -> Product inspection -> Labeling -> Label affixation -> Collection of labeled products.



Packing and Shipping:
Packaging and Shipment for the labeling machine


Packaging:
The labeling machine will be securely encased in a robust wooden crate, guaranteeing its safe transport.
To prevent any shipping-related damage, the machine will be enveloped in protective materials.
All components and accessories will be meticulously packed, and clear labels will facilitate easy identification.
Included in the packaging are a comprehensive user manual and a warranty card.



Shipping:
We provide a range of shipping alternatives, encompassing air, sea, and land transportation, tailored to meet our customers' specific requirements.
Our adept logistics team will thoughtfully plan the shipping route and manage all essential customs procedures.
In collaboration with trustworthy shipping companies, we ensure the punctual and secure delivery of our products.
Customers will receive a tracking number to monitor the real-time status of their ship
ment.
