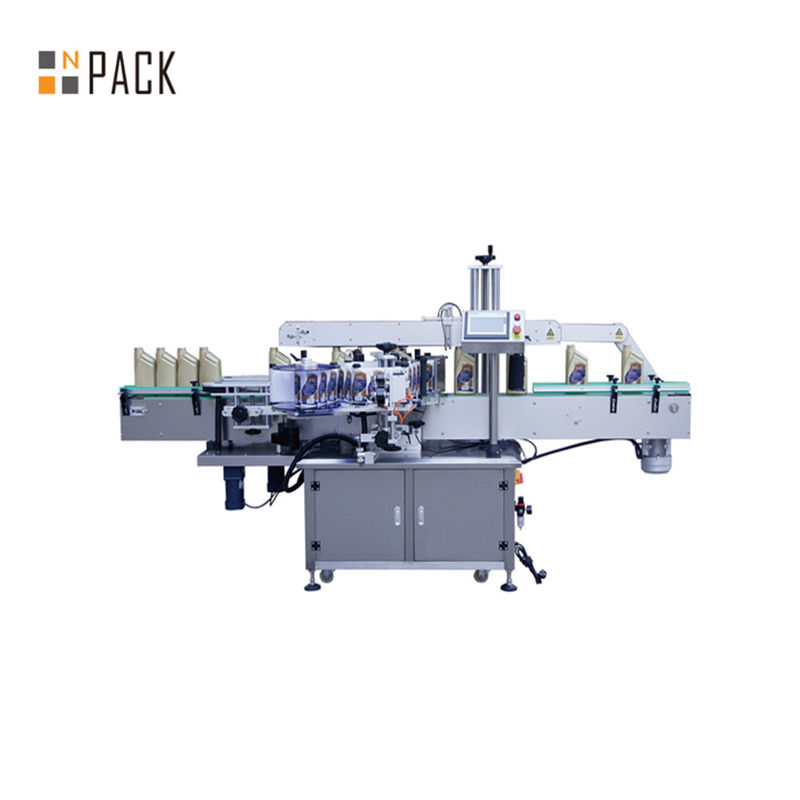

Automatic Square Bottle Labeling Machine

Minimum Order Quantity : 1 Price : 5000USD/set to 20000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-TS

Detail Information


labeling machine for square bottles


square bottle labeler


square bottle labeling machine

Product Description

Automatic Square Bottle Labeling Machine China Labeling Machine Manufacture

This double-sided adhesive labeling machine is suitable for symmetric and non-symmetric containers used in wine, food, cosmetics, and for labeling double-faced stickers on flat, square, oval, cylindrical, and other irregularly shaped containers.


Key Features and Performance:

The machine features a user-friendly touch display operation that is intuitive and fully functional. It incorporates a Siemens control system for enhanced stability, reliability, and prolonged operational lifespan.


Optional Accessories:

Transparent label sensor, synchronous hot coding printer, thermal transfer machine, inkjet printing machine.



1) Robust construction incorporates oversized drive components and a base frame made of aluminum and stainless steel, ensuring years of reliable service.

2) Various product infeed systems are available, offering precise product spacing and orientation. It can be used as a standalone unit or integrated in-line with filling equipment to match speeds.

3) Advanced high-torque micro-stepping driven applicators provide ratio-offset and speed-following capabilities for precise and reliable application of a wide range of label materials.

4) Designed to apply front and/or back panel labels, with the ability to label containers that are round, square, oval, or rectangular.



Technical Parameters
Labeling Speed
60-350pcs/min (Depending on label length and bottle thickness)
Height of Object
Thickness of Object
Height of Label
Length of Label
Label Roller Inside Diameter
Label Roller Outside Diameter
Accuracy of Labeling
Power Supply
220V 50/60HZ 3.5KW Single-phase
Gas Consumption of Printer
Size of Labeling Machine
Weight of Labeling Machine


Principle of Operation:

The automatic square bottle labeling machine operates on the principle of extrusion action to apply labels. As products move along the conveyor belt between spokes and baffles, a product testing photoelectric sensor is activated, signaling the main pulling motor to start. The motor spins out the label from the paper roll. Label placement on the products is determined by a set label delay programmed into the system.


Once the labels are affixed, a label detection sensor automatically halts the process upon detecting the gaps between the labels and tags. This marks the completion of one labeling cycle. The equipment repeats this cycle continuously, applying labels to all products until the labeling process is complete.
