Induction Aluminium Foil Heat Sealing Machine For Bottles Aluminum Foil Sealer

Minimum Order Quantity : 1 Price : 3000USD/set to 20000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE

Detail Information


aluminium foil heat sealing machine


aluminium foil sealing machine for bottles


aluminum foil sealer

Product Description

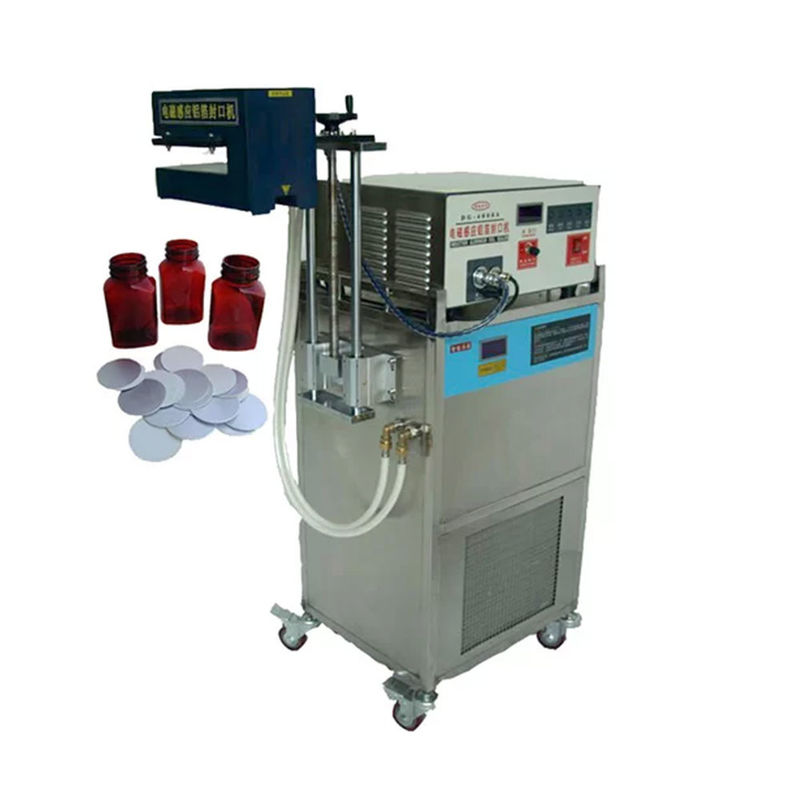

Induction Aluminium Foil Sealing Machine For Bottles

Induction sealing technology involves bonding thermoplastic materials through the process of induction heating. This method entails controlled heating of an electrically conducting object, typically aluminum foil, via electromagnetic induction, generating heat within the object through eddy currents.


Widely utilized across various manufacturing sectors, induction sealing finds applications in packaging, including fabricating packages such as forming tubes from flexible materials and attaching plastic closures to package forms. One of the primary applications of induction sealing is cap sealing, a non-contact approach to heat an inner seal for hermetically sealing the tops of plastic and glass containers. This sealing process occurs post-filling and capping of the container.


The induction aluminum foil sealing machine caters to PP, PE, PET, PS, ABS, HDPE, LDPE, and glass bottles. It employs electromagnetic principles to generate instantaneous high heat, melting aluminum foil that adheres to the bottle openings. This achieves the objectives of moisture-proofing, leak-proofing, mildew-proofing, and extending preservation duration.


1. Display panel for showcasing working voltage and current, ensuring clarity and ease of use.
2. Automatic protection against over-voltage and over-current for enhanced safety and reliability.
3. Air-cooled self-circulation systems guarantee high sealing power, ensuring superior quality and stable performance.
4. Versatile usage: can be integrated into production lines or operated independently.
5. Constructed with full 304 stainless steel, featuring surface finishing and special treatments to ensure durability, quality, and an attractive appearance.


1) Suitable for sealing PET bottles, PP bottles, PVC bottles, PE bottles, HDPE bottles, plastic bottles, glass bottles, and more.

2) Widely employed in cosmetic, beverage, chemical, medical, and food industries, contributing significantly to increased productivity and product quality.



Power 2000W
Voltage AC 220V 50HZ 110V 60HZ
Sealing Diameter 16mm-40mm
Capacity 2.4-18m/min (180 bottles/min for 30mm diameter PET bottle
Bottle height 30-260mm (special size for designing )
Machine size Main Engine: 600mm*450mm*1200mm
Conveyor Table: 1800mm*180mm*1300mm
Machine Weight Main Engine:90Kg


How Aluminum Foil Induction Sealing Machines Operate?

The induction sealing procedure commences with the introduction of a pre-filled cap-container assembly to the aluminum foil induction bottle sealing machine. Prior to capping, the lid is equipped with an aluminum foil heat induction liner.


As the cap-container combination moves along a conveyor, it passes beneath the seaming head emitting an oscillating electromagnetic field. During this passage, the aluminum foil heat induction liner undergoes heating due to eddy currents. The wax layer, constituting the second layer of the induction liner, melts and merges with the topmost layer, the pulp paperboard layer.


Upon complete melting of the wax layer, the third layer (the aluminum foil layer) separates from the lid. Simultaneously, the polymer layer, forming the final liner layer, heats and melds onto the lip of the plastic container. Following the cooling of the polymer, a hermetic seal is formed between the polymer and the container, ensuring product integrity.


The sealing process maintains the quality of the product within the container. However, there is a risk of foil overheating, potentially leading to damage to the seal layer and resulting in faulty seals. To mitigate this, NPACK conducts stringent quality inspections throughout the manufacturing process of your customized aluminum foil induction can seamer equipment.


If you are interested in bottle feeder machine, please contact us
