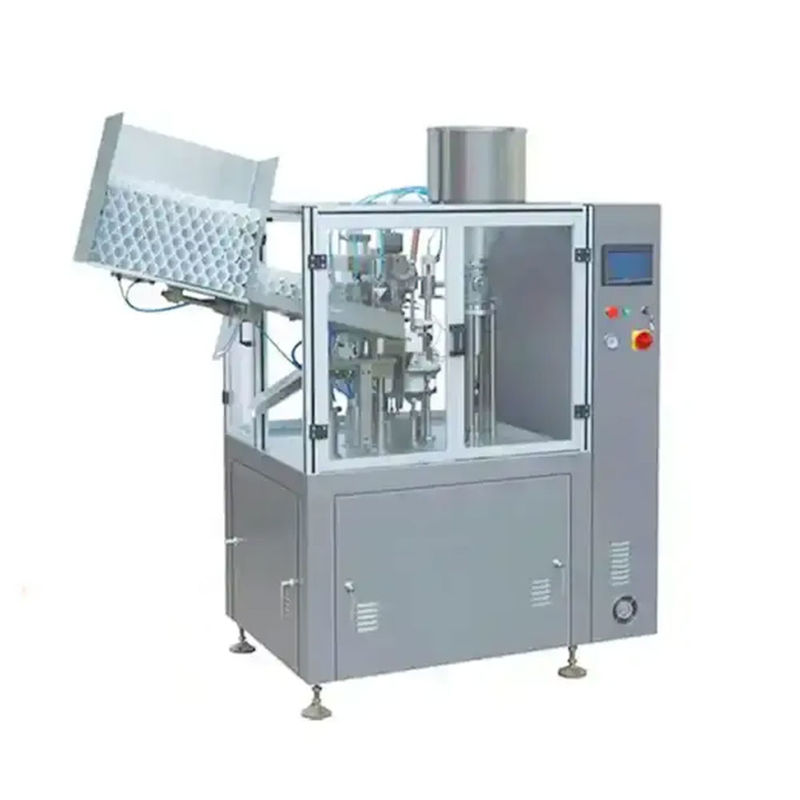

Semi Automatic Plastic Laminated Tube Filling And Sealing Machine With Date Printer

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-SF30A

Detail Information

Air Consumption: 0.6m³/min Filling Capacity: Max 35PCS/M
Filling Volume: 10-300ml Hopper Cubage: 30L
Operating Mode: Semi Automatic Power Consumption: 1.5kW
Sealing Type: Hot Air Sealing Tube Type: Laminated Or PE Tubes

laminated tube filling and sealing machine


semi automatic tube filling and sealing machine


lami tube filling sealing machine

Product Description

Semi Automatic Plastic and laminate Tube Filling And Sealing Machine with date printer

The semi-automatic tube filling and sealing machine is utilized for the filling of polyethylene and laminated tubes with gels, creams, or other fluids. It seals the tubes using hot air, imprints date and/or batch numbers, and trims excess plastic on the tube ending, a byproduct of the tube sealing process.

Constructed from stainless steel and employing a pneumatic system, this machine allows easy adjustment of filling volume and speed. With the exception of manually loading empty tubes, all work stages, including filling, sealing, cutting, printing codes, etc., are executed automatically by the machine. This machine is capable of filling various liquids such as skin care cream, paste, sauce, ketchup, jam, mustard, ointment, medicinal paste, toothpaste, etc., into plastic tubes or laminated material tubes and sealing them.


Possible applications of the affordable tube filling and sealing machine:
The cost-effective semi-automatic tube filling and sealing machine find applications in packaging cosmetics, pharmaceuticals, chemicals, and food products into tubes. This budget-friendly machine is specifically designed to handle small and medium-sized batches, production lots, or jobs, making it suitable for both regular production and laboratory use.

NPACK – Manufacturer of Manual Tube Filling and Sealing Machines
NPACK specializes in the manufacturing of manual tube filling and sealing/crimping machines designed for thermoplastic tubes (polyethylene (PE), laminated, and other plastics) as well as aluminum tubes. Contact us to receive a price quotation. We exclusively offer new machines and equipment, and we are confident that you will find our prices very competitive.

Name Semi Automatic Tube Filling Sealing Machine
Tubes material Laminated material, or PE
Products Liquid, cream, or paste
Volume 10-250ml
Filling Piston pump
Precision ±0.5%
Tube size Caliber:15-50mm, length 50-220mm
Pneumatic 0.6-0.8Mpa, 0.2 CBM/min
Capacity 20-35 pcs/min (Up to the size of the tubes and the filling volumes in each tube)
Voltage AC220V, 1 phase, 50/60Hz.
Power 3.3Kw.
Material Stainless steel 304
G.W. 450Kg.
Dimension L1250*W1050*H1600mm



  • Equipped with both inner wall and external heating devices for a secure and high-speed sealing of each tube tail.

  • Utilizes SUNX or SICK mark locating sensor to consistently seal tubes at the precise fixed position.

  • Includes a bucket with a stirrer, accommodating various liquid, cream, or paste products.

  • Operates with an advanced SIEMENS PLC and touch screen system for easy and user-friendly operation.

  • Features a graduator to ensure the rotary plate with 8 (or 10) tubes turns precisely at the same angle or circular distance each time.

  • Incorporates embossing codes for automatic date or batch coding on each tube tail.

  • Equipped with a circulating water chiller to cool down tube tails after sealing, ensuring firm and aesthetically pleasing seals.

  • Features a shears device for automatic trimming of the sealed edge, guaranteeing uniform and attractive tube tails.

  • Boasts high automation, with all work stages, except for inserting empty tubes by hand, completed automatically by the machine.

  • Enables finished tubes to be automatically directed into cartons or boxes, eliminating the need for manual handling.

Semi Automatic Tube Filler and sealer Main Workflow:

  1. Manual Loading of Tube:Operator manually loads tubes into the machine.

  2. Automatic Benchmarking:The system automatically establishes a reference point for precise positioning.

  3. Automatic Filling:The machine performs automatic filling, with a feature to prevent filling when no tube is detected. The system may include a bottom filling option based on the material viscosity specified by the customer.

  4. Automatic Heating:Utilizes both inner and outer heating mechanisms for efficient sealing.

  5. Automatic Sealing and Date Code Printing:The system automatically seals the tubes and imprints the date code.

  6. Automatic Cut of Excess After Sealing:Automatically trims off the excess part of the tube after sealing to ensure a clean finish.

  7. Output Finished Product:Completed and sealed tubes are automatically directed to the output, streamlining the production process.
