Automatic Liquid Detergent Drum Filling Machine With Two Nozzles Weighing Filling System

Minimum Order Quantity : 1 Price : 5000USD to 30000USD
Packaging Details : case Delivery Time : 30 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1000sets per year
Place of Origin: CHINA Brand Name: NPACK
Certification: CE Model Number: NP-SWF200

Detail Information

Air Consumption: 0.6m³/min Air Pressure: 0.6-0.8MPa
Filling Accuracy: ±0.02% Filling Range: 10KG-300KG
Material: Stainless Steel Model: NP-SWF200
Power Supply: 220V/50Hz Suitable Bottle Type: Round, Square, Flat
Weight: 400kg

automatic drum filling machine


drum filling machine


auto drum filling machine

Product Description

liquid detergent drum filling machine with two nozzles weighing filling system

A liquid detergent drum filling machine with two nozzles is designed to efficiently fill 200-liter drums with liquid detergent. These machines are commonly used in industrial settings where large quantities of liquid detergent need to be packaged quickly and accurately.

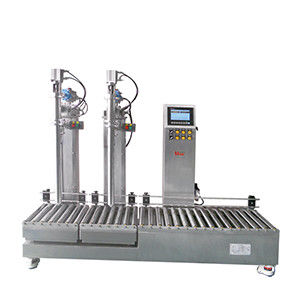

Automatic Liquid Detergent Drum Filling Machine With Two Nozzles Weighing Filling System 0


How it works?

  1. Drum Placement:Empty drums are typically placed on a conveyor or a platform, ready to be filled.

  2. Conveyor System:A conveyor system may be employed to move the drums through the filling process.

  3. Filling Nozzles:The machine is equipped with two filling nozzles, each positioned over a drum.

  4. Liquid Detergent Supply:The liquid detergent is stored in a reservoir or tank connected to the filling machine.

  5. Control System:The machine is controlled by a system that regulates the amount of detergent dispensed by each nozzle.

  6. Filling Process:The filling process is initiated, and the nozzles are lowered into the drum openings.The liquid detergent is pumped through the nozzles into the drums.The control system ensures that the correct amount of detergent is dispensed into each drum.

  7. Nozzle Retraction:Once the filling is complete, the nozzles are retracted, and the drums are ready for the next stage.

  8. Optional Features:some machines may include features such as drip trays or automatic capping systems for drum sealing after filling.

  9. Safety Features:safety features may be integrated, such as emergency stop buttons and sensors to detect issues during the filling process.

  10. Cleaning System:After a certain number of cycles or at the end of the production run, the machine may have a cleaning system to flush out any remaining detergent from the filling nozzles.


Main parameters

  • Max capacity: 200kg
  • Min division: 0.1kg
  • Filling Accuracy: ±0.1%
  • Filling Speed: about 80~100 Drum/hr(based on the feeding speed)
  • Waterproof grade: IP65
  • Power: AC220/50Hz(supplied by customer)
  • Air supply: 0.4-0.6Mpa(supplied by customer)
  • Temperature: -10℃- 40℃
  • Control mode: 2-shift control
  • Filling mode: inserting filling, above-surface filling
  • Platform: 1400×700mm. Roller: stainless steel
  • Empty drum platform: 700mm×1000mm. Roller: stainless steel
  • Storage platform: 700mm×1000mm. Roller: stainless steel
  • filling valve pipe: SUS304 stainless steel and Teflon(SUS 316L is optional)
