Horizontal Vial Ampoule Automatic Round Bottle Sticker Labelling Machine Manufacturers

Minimum Order Quantity :	1	Price :	5000USD/set to 20000USD/set
Packaging Details :	Wooden box	Delivery Time :	40 working days
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Supply Ability :	100SETS

Place of Origin:	China	Brand Name:	N PACK
Certification:	CE	Model Number:	NP-HL

Detail Information

Highlight:

automatic sticker labelling machine

bottle sticker labelling machine manufacturers

automatic round bottle sticker labelling machine

Product Description

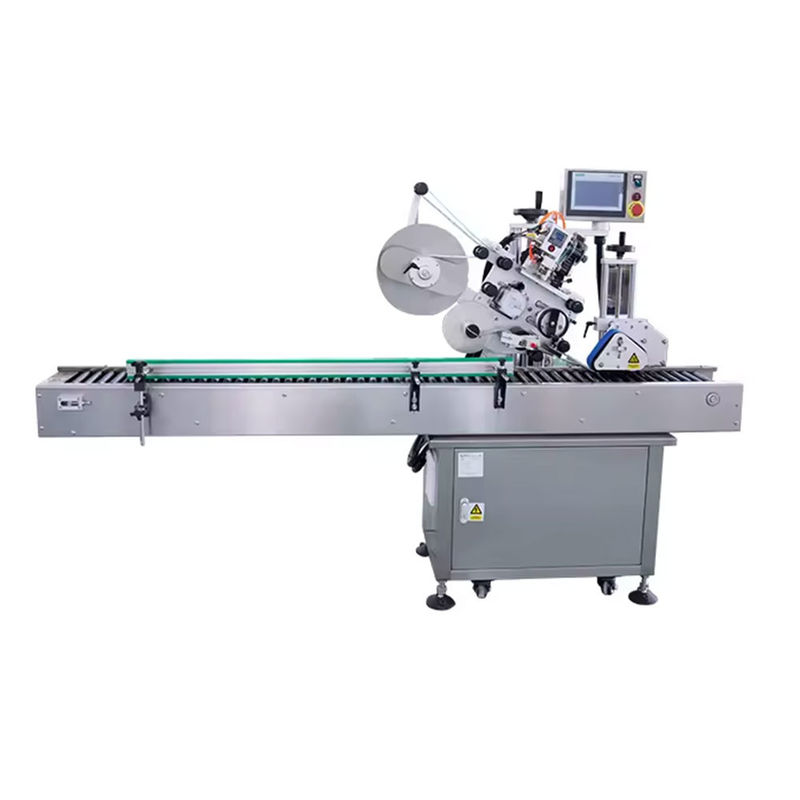

automatic horizontal vial ampoule sticker labeling machine

This automated horizontal vial labeling machine is designed for applying labels around or partially around various unstable cylindrical objects. It finds extensive applications in cosmetics, food, pharmaceuticals, household chemicals, electronics, toys, hardware, plastics, and other industries, capable of achieving full-circle or semi-circle labeling. Employing horizontal delivery and labeling enhances stability and boosts labeling efficiency. Optional ribbon coders and inkjet printers allow simultaneous printing of production lot numbers, dates, and other information, integrating labeling with coding to streamline packaging processes and enhance production efficiency. Compatible with a variety of labels including stickers, electronic surveillance codes, barcodes, QR codes, transparent labels, and more. This machine guarantees high stability, flawless labeling, absence of bubbles or wrinkles, and precise labeling accuracy.

The automatic horizontal self-adhesive labeling machine is primarily designed for small-diameter round containers used in pharmaceuticals, household chemicals, food, cultural supplies, electronics, and similar industries.

Features:

1. Constructed with a frame made of 304 stainless steel
2. Labeling speed automatically adjusts to match conveyor speed for consistent labeling quality
3. Automatic infeed turntable with a diameter of 550mm
4. Incorporates a hot foil coding machine
5. Utilizes servo motor, PLC, and Touch Screen for precise label placement
6. Automatically verifies label length
7. Features a warning system for insufficient or broken labels
8. Labeling only occurs when bottles are present
9. Automatically alerts when no labels are detected
10. Provides automatic warning when ribbon supply is depleted
11. Bottles are positioned on the tray and then automatically transferred to the conveyor for labeling
12. Servo motor control ensures label application without breakage, enabling high-speed operation

parameter

Model	VK-HL
Labeling speed(pcs/min)	80-250(relate to material and label size)
Labeling accuracy(mm)	±1.0mm(material and label sizes are not countedin)
Label size(mm)	(L)15-300mm(H)10-150mm
Material size(mm)	Φ20-φ120mm(H)20-300mm
Roll inside(mm)	φ76mm
Roll outer diameter(mm)	Max:Φ320mm
Machine size(mm)	(L)1950(W)1100(H)1300(mm)
Power supply	AC220V50Hz/60Hz1500W(Can be customized )

Workflow:
Manually position adhesive-laden products (either on-line or using a bottle handling turntable) >> Automated separation, alignment, and transportation of products >> Product inspection >> Application of product labels >> Collection of labeled products (proceeding to the next stage) >> Removal of products.

Working principle:
After the bottles enter the conveyor belt of the labeling machine, the bottles are fed to the labeling machine at a constant speed. The mechanical fixing device separates the pasted objects by a fixed distance and pushes the pasted objects along the direction of the conveyor belt. After the mechanical system (driving wheel, labeling wheel and reel), the driving wheel intermittently pulls the label belt to move, and the label is pulled out from the reel and pasted on the object to be pasted through the labeling device

Packing and Shipping:
Packaging and Shipment for the Tube Filling and Sealing Machine
Packaging:
The Tube Filling and Sealing Machine will be securely encased in a robust wooden crate, guaranteeing its safe transport.
To prevent any shipping-related damage, the machine will be enveloped in protective materials.
All components and accessories will be meticulously packed, and clear labels will facilitate easy identification.
Included in the packaging are a comprehensive user manual and a warranty card.
Shipping:
We provide a range of shipping alternatives, encompassing air, sea, and land transportation, tailored to meet our customers' specific requirements.
Our adept logistics team will thoughtfully plan the shipping route and manage all essential customs procedures.
In collaboration with trustworthy shipping companies, we ensure the punctual and secure delivery of our products.
Customers will receive a tracking number to monitor the real-time status of their shipment.
