Automatic Three Roller Sticker Labeling Machine For Round Bottle Positioning

Minimum Order Quantity : 1 Price : 5000USD/set to 20000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-RL

Detail Information


round labeling machine


round bottle labeler


sticker labeling machine for round bottle

Product Description

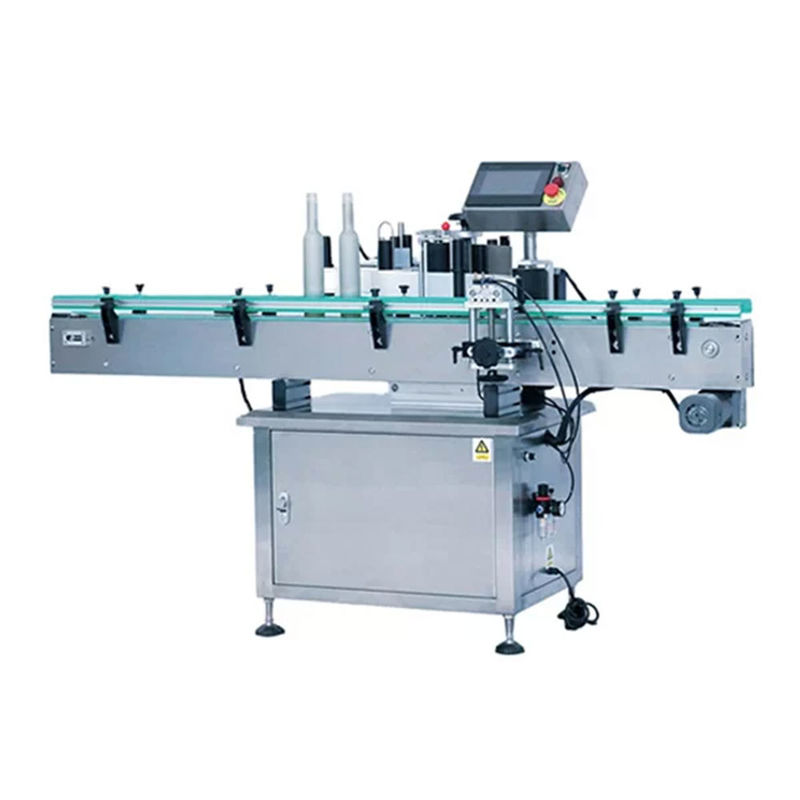

Automatic Three Roller round bottle Positioning Labeller Machine

This is a specially designed machine tailored for accurately labeling round bottles with an orientation device, ensuring precise orientation and ideal for wrap-around labeling.


The orientated wrap-around labeling machine is servo motor-controlled, offering exceptional label accuracy of up to 0.5mm. It is compatible with various types of round containers and features electrical components sourced from Taiwan or Japan. With a three-point holding mechanism, it achieves high labeling precision for round bottles. The pneumatic wrap-around station accommodates versatile bottle diameters.


This automatic three-roller positioning labeling machine is capable of labeling the circumference or other curved surfaces of food, glass, PET, plastic round bottles, jars, cans, tins, etc. It offers an optional circumference positioning detection device for specified position single or double sticker labeling (one label or two labels A/B label simultaneously).


1. Offers optional positioning function and supports both single sticker or dual stickers labeling modes.
2. Easily adjustable labeling head; labeling speed automatically synchronizes with conveyor belt speed for precise labeling.
3. PLC human interface allows for setting and adjusting conveyor line speed, pressure belt speed, and label output speed.
4. Equipped with renowned brand PLC, stepper or servo motor, drivers, sensors, ensuring high-quality component configuration.
5. Specifically designed for fixed-point and positional labeling of round bottles.
6. Utilizes rubber wheel differential spacing mechanism and inverter stepless speed change, allowing for flexible spacing adjustment without the need for changing specification parts during product transitions.
7. Employs imported, reputable servo motors for high-speed, precise, and stable operation.
8. Cylinder positioning ensures rapid action and suitability for a wide range of product specifications.
9. Rubber wheel rolling mechanism ensures long service life; offers high-precision positioning labeling.
10. Labeling accuracy of ± 0.5 mm.


Machine Size 2100(L)×1000(W)×1450(H)mm
Output Speed 30-60pcs/min depends on bottle and label size
Bottle height 30-380mm
Bottle diameter 80-170mm
Label Height 15-140mm (can be customize)
Label Length 25-300mm (can be customize)
precision ±0.5-1mm
Roll inside 76mm
Roll Outside Diameter 300mm
Power Supply 220V 0.8KW 50/60HZ

Bottle Distribution---Alignment---Compression---Labeling---Sealing---Completion

1. Securely mount the label roll onto the machine following the provided diagram, and adjust the height of each component accordingly.

2. Verify the accuracy of label positioning.

3. Fine-tune the distance between the two rails and between the brush and conveyor, ensuring it's appropriate for product passage.

4. Activate the power switch and optoelectronic switch.

5. Start the motor and label dispensing mechanism, and troubleshoot any abnormalities during the labeling process.

6. Adjust the labeling position as needed.

7. After successful testing, proceed with normal machine operation.

8. Power down the machine after completion.


Packing and Shipping:
Packaging and Shipment for the Tube Filling and Sealing Machine
The Tube Filling and Sealing Machine will be securely encased in a robust wooden crate, guaranteeing its safe transport.
To prevent any shipping-related damage, the machine will be enveloped in protective materials.
All components and accessories will be meticulously packed, and clear labels will facilitate easy identification.
Included in the packaging are a comprehensive user manual and a warranty card.
We provide a range of shipping alternatives, encompassing air, sea, and land transportation, tailored to meet our customers' specific requirements.
Our adept logistics team will thoughtfully plan the shipping route and manage all essential customs procedures.
In collaboration with trustworthy shipping companies, we ensure the punctual and secure delivery of our products.
Customers will receive a tracking number to monitor the real-time status of their shipment.
