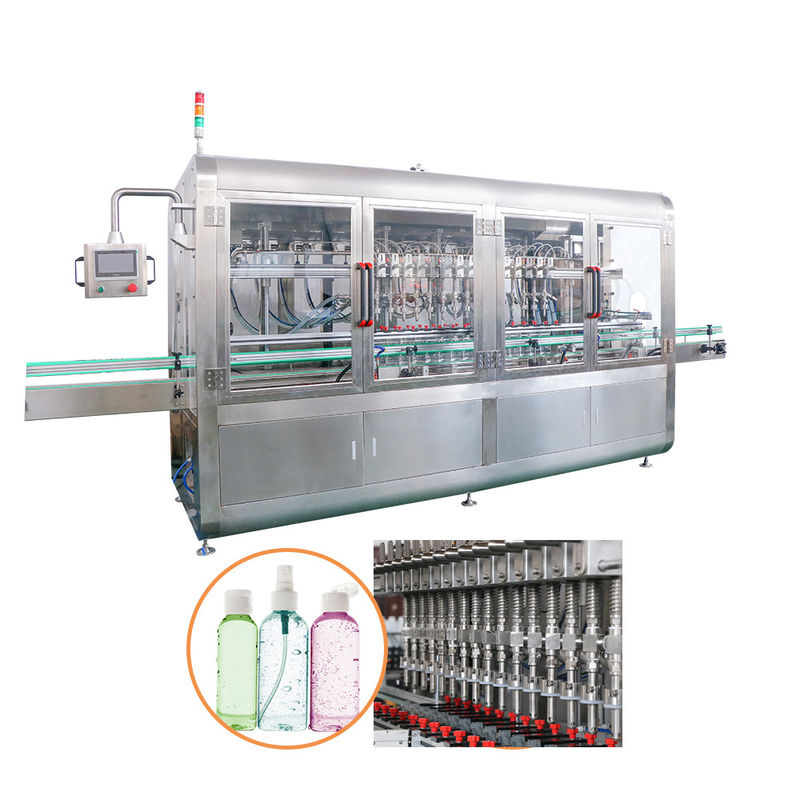

Advanced Pressure Overflow Filling Machine For Beverage And Cleaning Industry

Minimum Order Quantity : 1 Price : 8000USD to 30000USD
Packaging Details : case Delivery Time : 30 days
Payment Terms : L/C, T/T Supply Ability : 10sets per month
Place of Origin: China Brand Name: NPACK
Certification: CE Model Number: NP-OF

Detail Information

Control System: PLC Control System+Touch Screen Air Pressure: 0.6Mpa
Bottle Size Range: 10ml - 5000ml Power Supply: 220V/50Hz
Product Type: Overflow Filling Machine Filling Material: Thin Liquid
Filling Method: Overflow Filling Machine Material: Stainless Steel
Power Consumption: 2.5KW Filling Accuracy: ±0.5%
Warranty: One Year

Pressure Overflow Filling Machine


Overflow Filling Machine for Beverage


Beverage Filling Machine

Product Description

Advanced Pressure Overflow Filling Machine for Beverage and Cleaning Industry

What is a pressure overflow filling machine?

Npack NP-OF pressure overflow filling machine, commonly referred to as an overflow filler machine, finds widespread use in the food and beverage sector for filling containers with liquid products like juice, water, and various beverages. This type of liquid filling machine is renowned for its ability to deliver a uniform and precise filling process. By maintaining a high level of consistency, these bottle fillers ensure that each container is filled to an identical level and with a consistent volume of the desired product.


How a pressure overflow filling machine working?

Advanced Pressure Overflow Filling Machine For Beverage And Cleaning Industry 0

A pressure overflow filler is a specific category of overflow filling machine designed to employ pressure for precise and uniform liquid product filling into containers. Particularly suitable for low to medium-viscosity liquids, such as those found in the beverage, distilled spirits, and cleaning industries, these machines ensure consistent visual fill levels in containers for a uniform appearance on shelves. It's important to note that while this filling principle guarantees a consistent visual fill level, it doesn't measure the actual volume of liquid being dispensed.


The pressure overflow filler operates by filling containers to a predetermined level, utilizing an overflow nozzle equipped with two tubes—one for filling and the other for the return process. As the overflow nozzle descends, the bottleneck activates, opening the nozzle, and the fill tube dispenses liquid into the container for a specified duration and pressure set on the machine.


Upon reaching the return tube, instead of continuing to fill the container, the liquid overflows through the return tube into a designated tank, ensuring consistent fill levels. When all containers reach this point, indicating they are uniformly filled, the machine halts the pump, raises the nozzles, and releases the containers, ready for the next batch. Subsequently, the containers can be sealed using an inline capping machine and labeled with labeling machines, preparing them for packaging and distribution.


Centrifugal pumps and diaphragm pumps are commonly employed with automatic inline pressure overflow fillers for handling thin products. For higher-viscosity products, positive displacement pumps are preferred due to their enhanced handling capabilities.


The pressure overflow filler stands out as a highly efficient and precise method for liquid product container filling. Its reliability in delivering consistent and accurate filling makes it a preferred choice in the food and beverage industries. Additionally, these fillers can seamlessly integrate with other packaging machines, such as inline capping and labeling machines, forming a comprehensive inline packaging system tailored for low to medium-viscosity liquid products.


Structural features:

  • Robust 304 stainless steel construction with a heavy-duty welded C frame ensures durability.
  • Equipped with a 20-gallon stainless steel overflow tank for efficient liquid management.
  • Features a stainless steel cover for the overflow tank, providing protection and containment.
  • Boasts a 20-hose 304 stainless steel feeding manifold for precise liquid distribution.
  • All contact parts are crafted from stainless steel, ensuring sanitary conditions, and can be customized with Teflon, Viton, and hoses according to your specifications.
  • Tailored options for special seals or hoses are available upon request.
  • Facilitates fast and calibrated height changeovers with a dedicated guide.
  • Designed for easy mobility with the filling machine mounted on four heavy-duty casters.
  • Ensures machine stability through 1-inch 304 stainless steel leveling screws for precise leveling adjustments.


Control Panel Characteristics:

  • Advance PLC for comprehensive machine logic functions, with the flexibility for special program modifications to accommodate specific adaptations.
  • Incorporates a frequency control drive to regulate pump speed, acceleration, and deceleration, providing precise control over the filling process.
  • Enables convenient adjustment of bottle filling time via the Omron Timer on the front panel.
  • Features front-panel conveyor speed control for machines equipped with conveyors, allowing seamless synchronization.
  • Conveniently displays a front-panel-mounted bottle counter for easy monitoring.
  • Offers straightforward access to Start and Emergency STOP functions on the front panel.
  • Allows nozzle quantity adjustments with a front-panel nozzle code for enhanced flexibility.
  • Incorporates standard Omron fiber optic sensors for container gating, ensuring reliable performance.
  • Capacity to expand up to 20 nozzles for increased operational speed.
  • Implements a PLC-controlled mechanism to prevent filling when no bottle is present, ensuring efficiency and precision in the filling process.



1. Capacity 2000-2400 b/h
2. Filling Volume 100-5000ML
3. Accuracy Liquid level error range ≤2mm
4. Dimension 2460x1080x2200mm
5. Power 2500W, 220VAC
6. Weight(kg) 880kgs
7. Air compressor ≤0.6Mpa
