Product Description

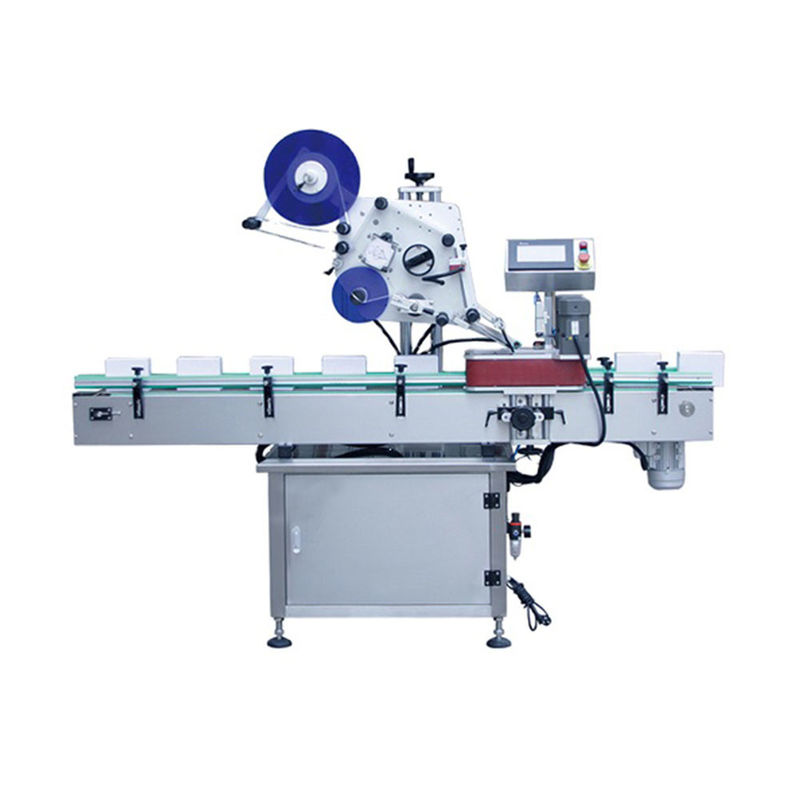

Full Automatic Plane Box Bag Labeling Machine With Servo Motor
It is designed to apply labels or self-adhesive film onto the top surface of various items, including books, folders, boxes, cartons, and more. The labeling mechanism is adjustable, making it suitable for labeling uneven surfaces. Widely utilized for flat labeling of large products with a wide range of specifications, this machine allows for direct printing of label content, eliminating the need for separate printing before labeling. This streamlines the labeling process and provides control over the quantity of printing and labeling. Additionally, an optional printer or inkjet printer head can be integrated for printing production dates, batches, barcodes, and other information directly onto the labels.
main feature
1. Versatile applications cater to product widths ranging from 30mm to 350mm for both product labeling and application of self-adhesive film on flat surfaces. The interchangeable components accommodate standard and uneven surfaces for labeling.
2. Boasting high labeling accuracy, the system employs either a stepper motor or servo motor for precise label delivery. Additionally, integrated detour corrective mechanisms ensure labels remain aligned, preventing any offset during the labeling process. Eccentric technology aids in traction, ensuring non-skid movement for precise labeling.
3. Sturdy construction features three adjustment mechanisms, leveraging the stability of a triangular design for overall solidity and durability.
4. Offers flexibility for single-unit or assembly-line production, facilitating straightforward layout configurations at production sites.
5. Equipped with intelligent control functionalities, including automatic photoelectric tracking and features such as no-label-no-application and automatic label detection to prevent wastage due to mislabeling or label leakage.
6. User-friendly touch screen interface provides comprehensive instructions in Chinese, along with detailed failure prompts, allowing for quick and easy adjustment of various parameters.
7. Label printing content can be cached for efficient printing and labeling processes.
Parameter
|
|
|
Machine Size
|
1600(L)×1000(W)×1250(H)mm
|
|
Output Speed
|
20-100pcs/min depends on label and bottle size
|
|
Height Label Object
|
30-280mm
|
|
Bag size
|
max L60cm; max W 40cm; max H10cm
|
|
Label Height
|
15-140mm
|
|
Label Length
|
25-300mm
|
|
Pastes the sign precision
|
±1mm
|
|
Roll inside
|
76mm
|
|
Roll Outside Diameter
|
300mm
|
|
Power Supply
|
220V 0.8KW 50/60HZ
|
|
Power Supply
|
2800(L)×1650(W)×1500(H)mm
|
|
Weight of Labeling Machine
|
450Kg
|
working principle
The sensor identifies the product as it passes, transmitting a signal to the labeling control system. This signal undergoes processing through the PLC. Subsequently, the label is dispensed at the optimal moment and affixed to the predetermined position on the product. As the product moves through the label applicator, the label is securely adhered, completing the labeling process for one item.
Company Overview
With a rich legacy of innovation and precision engineering, we proudly position ourselves as a leading manufacturer of filling capping labeling machinery. Npack, a specialist in the field, has honed its expertise in crafting paste filling machines that set industry standards. Our equipment is meticulously designed to meet the diverse needs of the liquid processing and packaging industry.
Committed to remaining at the forefront of filling capping labeling technology, we consistently invest in research and development to deliver the latest innovations. The Npack team is dedicated to providing exceptional service and support throughout your partnership with us. With a global reach, we assist sauce processors and manufacturers in enhancing their production capabilities.
After-Sales Services
1. Installation:
Our team of skilled technicians is prepared to dispatch and install the chili sauce filling machine. The service fee covers installation, travel, meal expenses, and more.
2. Training:
To ensure optimal performance of the hot sauce filling machine, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.
3. Warranty:
Expect efficient service, a one-year quality assurance period, parts supply, and prompt troubleshooting feedback when repairing the chili sauce filling machine.
4. Consultation:
Take advantage of our complimentary consultation service. Our professional sales team will guide you to the most suitable solution, complete with CAD drawing designs for the hot sauce filling machine.
5. Technical Support:
Benefit from our all-weather, long-term technical support. Simply drop us an email or give us a call, and we'll provide swift feedback, ensuring your peace of mind.
6. Spare Parts:
During transportation, we include a set of vulnerable spare parts for the chili sauce filling machine at no additional cost. Additionally, you can order a comprehensive range of high-quality parts at any time.
