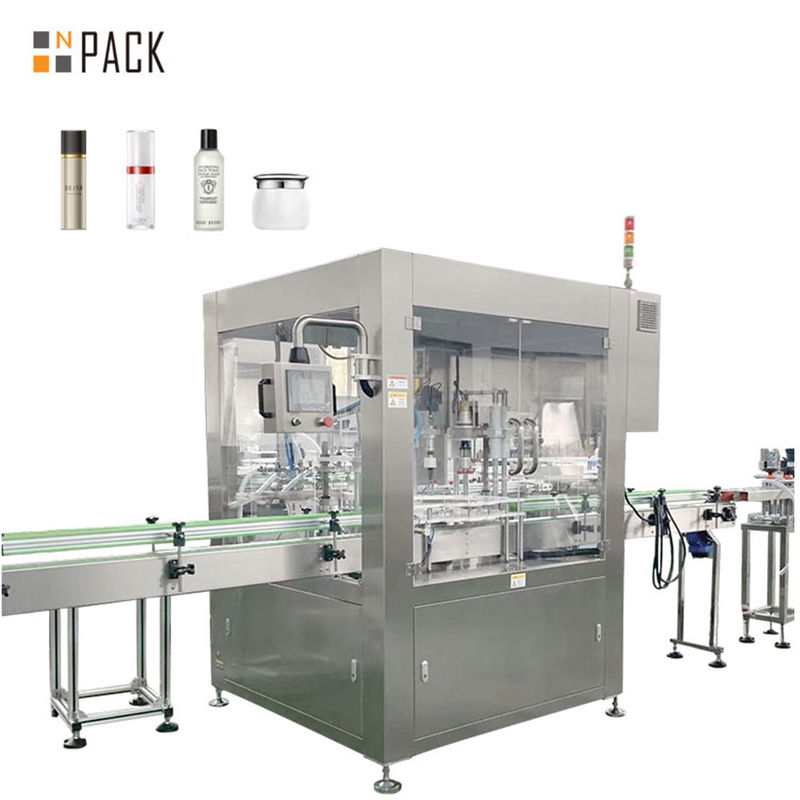

High accuracy automatic peristaltic pump filling machine for liquid
High accuracy peristaltic pump filling machine

The Shanghai Npack peristaltic pump filling machine stands out as a versatile and indispensable filling and capping equipment monoblock, it is widely employed across various industries, including food and beverage, pharmaceuticals, and cosmetics. This innovative machine incorporates a peristaltic pump to precisely transfer liquid or viscous materials from a storage tank to containers, eliminating the need for additional equipment.
The peristaltic pump functions by compressing and releasing a flexible tube, creating a vacuum that efficiently draws the liquid into the tube and subsequently expels it through the other end. This meticulous process ensures accurate measurement and dispensing, minimizing the risk of leaks or spills during the filling operation.
An exceptional feature of the Shanghai Npack peristaltic filling machine is its adaptability, accommodating a diverse range of containers, from small vials to large bottles and jars. Moreover, the ease of cleaning and maintenance distinguishes this equipment, as the only component in contact with the filled material is the replaceable flexible tube.
Some Key Features
-
Peristaltic Pump Technology:Utilizes a peristaltic pump mechanism for precise liquid dispensing.Compresses and releases a flexible tube to create a vacuum, ensuring accurate measurement.
-
High Accuracy:Guarantees precise and consistent filling with minimal margin of error.Ideal for applications requiring stringent quality control.
-
Versatility in Container Types:Accommodates a wide range of containers, including small vials, bottles, and jars.Adjustable settings to tailor the filling process to various container sizes
-
Automation and Efficiency:Fully automatic operation streamlines production processes.Enhances efficiency by eliminating the need for additional equipment.
-
Easy Maintenance:Designed for easy cleaning and maintenance.Only the flexible tube comes into contact with the filled material, facilitating quick and hassle-free replacement.
Main Parameters
|
|
|
|
|
About 2kW depends on how many pumps
|
|
About 20 to 80 bottles/min
(depending on bottle size and filling materials)
|
|
1ml to 10ml ,10-100ml (Can be customized)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
About 2280*1300*1960mm(Filling Machine)
About 1120*710*680mm(Vibratory Bowl)
|
|
About 600kg(Filling Machine)
About 90kg(Vibratory Bowl)
|
Product Detail
What is Peristaltic pump?
A peristaltic pump is a type of positive displacement pump that operates by compressing and relaxing a flexible tube or hose to move fluids. The pump typically consists of a rotor with rollers, shoes, or lobes that compress and decompress the flexible tubing. As the rollers move along the tubing, they create a squeezing action, propelling the fluid through the tube.
Key features and characteristics of peristaltic pumps include:
- Gentle Pumping Action: Peristaltic pumps offer a gentle and pulsation-free pumping action, making them suitable for applications where shear-sensitive fluids or delicate materials need to be transferred without damage.
- Self-Priming: Peristaltic pumps are often self-priming, meaning they can pull fluids into the tubing without the need for external priming.
- Reversible Flow: The direction of flow in a peristaltic pump can be easily reversed by changing the rotation direction of the rotor, allowing for versatility in fluid transfer applications.
- No Contamination of Pump Components: Since the fluid only comes into contact with the tubing, there is minimal risk of contamination of the pump components. This makes peristaltic pumps suitable for hygienic applications.
- Easy Maintenance: Peristaltic pumps are relatively easy to maintain as the only part that contacts the fluid is the tubing. Tube replacement is a straightforward process, reducing the risk of contamination and simplifying maintenance.
- Accurate Dosing: Peristaltic pumps are known for their accurate dosing capabilities, making them suitable for applications where precise control of flow rates and volumes is essential.
- Wide Range of Materials: The tubing used in peristaltic pumps can be made from various materials, allowing them to handle a wide range of fluids, including corrosive and abrasive substances.
Peristaltic pumps find applications in a variety of industries, including:
- Medical and Laboratory: They are used for pumping fluids in medical devices, diagnostic equipment, and laboratory instruments.
- Pharmaceuticals: Peristaltic pumps are employed in drug manufacturing, where precise dosing and gentle handling of pharmaceuticals are crucial.
- Food and Beverage: These pumps are used for transferring food and beverage products, including liquids with solids or particulates.
- Water Treatment: Peristaltic pumps are used in water and wastewater treatment for dosing chemicals and transferring fluids.
- Industrial Processes: They find application in various industrial processes, such as handling chemicals, paints, and coatings.
