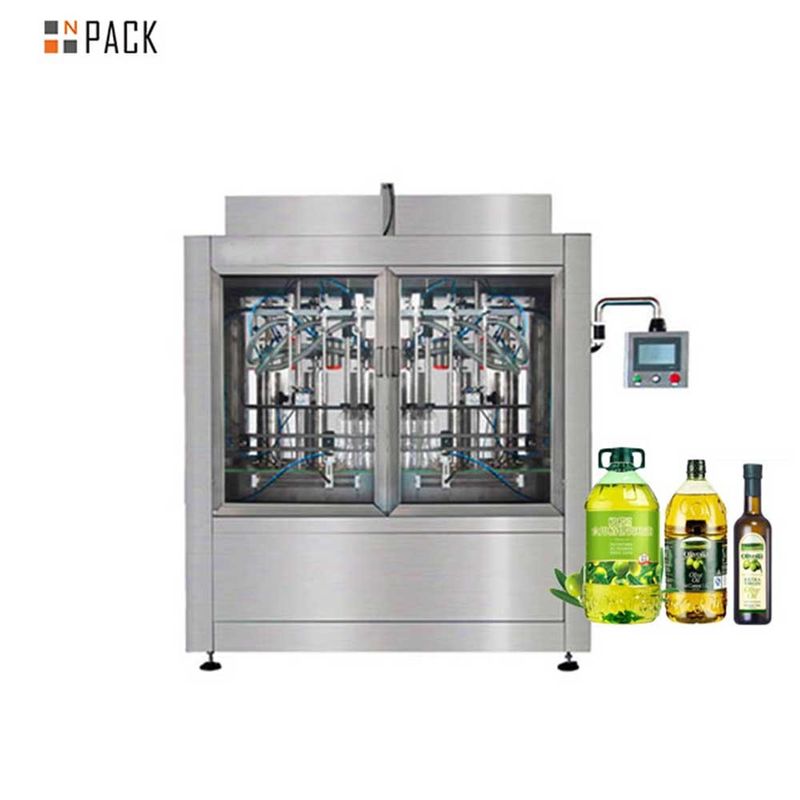

1000Ml 5000Ml Pet Bottle Peanut Automatic Mustard Oil Filling Machine Oil Filler Machine

Product Description

Automatic 1000 Ml 5000 Ml Pet Bottle Peanut Oil Filling Machine

The production line for filling peanut oil is specifically tailored for edible oil applications. Over time, we've fine-tuned and enhanced the equipment's details and functions based on customers' packaging needs, ensuring the filling machine is better suited for grease packaging. Notably, our successful research and development of the multi-head multi-pump filling system ensures prevention of material leakage from the source while maintaining a balance between filling speed, precision, and stability.

The peanut oil filling machine accommodates fluid volumes ranging from 1kg to 5kg. It automatically completes a series of tasks such as bottle counting, piston filling, and bottle conveyance. This machine is particularly well-suited for the precise filling of viscous liquids, yogurt, edible oil, and lubricating oil. It serves as an ideal packaging solution for the food, pharmaceutical, cosmetic, and fine chemical industries. Utilizing programmable logic controller (PLC) and high-speed industrial control software enables real-time control, making it user-friendly and easily adjustable. Built in accordance with GMP standards, each pipeline connection employs modular quick assembly for easy disassembly and cleaning. Parts in contact with materials and exposed components are crafted from high-quality stainless steel, ensuring safety and hygiene. The machine boasts a sleek, stable design, environmentally friendly operation, and adaptability to various work environments.

Feature
1. Crafted entirely from SUS 304 in adherence to GMP standards.
2. Equipped with an anti-drip mechanism on the filling head to prevent leakage during operation.
3. Utilizes advanced technology and components sourced from top-tier brands.
4. Boasts a compact and rational design with an elegant appearance, facilitating convenient adjustment of filling volumes.
5. Rapid integration of filling and capping, ideal for high-volume production lines.
6. Employs piston pumps for filling, suitable for various liquids with high precision; Pump structure features quick-disassembly components for easy cleaning and sterilization.
7. Volumetric injection pump's piston ring employs diverse materials such as silicone or ceramic based on liquid characteristics.
8. PLC control system with frequency conversion for speed adjustment, ensuring high automation.
9. Features automatic counting with no-fill function if no bottle is detected, equipped with anti-dropping mechanism.
10. Allows lump adjustment of filling quantity for all pumps, facilitating easy and swift operation.
11. Filling head incorporates anti-dropping mechanism, diving to the bottom for filling and rising gradually to prevent bubbling.
12. Versatile design accommodates bottles of varying sizes, easily adjustable for swift customization.
13. Complies with GMP requirements for overall machine integrity.

Main parameter

How Does Peanut Oil Filling Machine Work?

The operation of piston filling is quite straightforward. Initially, the valve connects to the hopper and the piston cylinder. Then, the piston draws the material from the hopper into the piston cylinder. Subsequently, the valve redirects to the filling nozzle (connected to the piston cylinder and the filling nozzle), allowing the piston to push the material in the cylinder to flow from the filling nozzle into the packaging container. This process ensures highly accurate volumetric fills, as the interior volume of the cylinder remains constant, thus maintaining consistent product volumes dispensed into the bottles.

Piston filling systems are versatile, suitable for liquids ranging from thin viscosities to thick ones. They can handle semi-solids and liquids with particulates, delivering precise amounts of product into containers. These systems are supplied from a bulk tank, which can be configured with additional features such as a buffer tank utilizing level-sensing float, a manifold with direct draw, or recirculation methods. NPACK offers various models of piston fillers tailored to diverse industrial needs, catering to both high-volume operations and startups seeking economical solutions. Additionally, we provide customization options to enhance filling efficiency, such as integrating a heated hopper to warm thicker liquids for smoother flow.

Producti Details

After-Sale Services:

1. Installation:
Our team of proficient technicians is prepared to dispatch and set up the filling machine. The service fee encompasses installation, travel, meal expenses, and related costs.

2. Training:
To optimize the performance of the filling machine, we offer on-site or factory training sessions for dealers, machine operators, engineers, and technicians.

3. Warranty:
When it comes to repairing the filling machine, expect efficient service, a one-year quality assurance period, parts supply, and prompt troubleshooting assistance.

4. Consultation Service:
Take advantage of our complimentary consultation service. Our expert sales team will assist you in finding the most suitable solution, complete with CAD drawing designs for the filling machine.

5. Technical Support:
Benefit from our comprehensive, round-the-clock technical support. Simply reach out to us via email or phone, and we'll provide swift assistance, ensuring your peace of mind.

6. Spare Parts:
During transportation, we include a set of essential spare parts for the filling machine at no additional cost. Moreover, you can order a wide range of high-quality parts at any time.

Npack offers a wide range of customization choices for filling equipment designed for sunflower oil and other machinery in our stock. Select from a variety of configurations, sizes, and arrangements to personalize your liquid packaging setup. Our skilled professionals are proficient in assisting you with equipment selection and creating a tailored system that fits seamlessly into your facility.

To initiate the design and integration of a complete system including sunflower oil filling machines and complementary equipment, contact Npack for swift assistance.
